GRDatasheet (PDF)

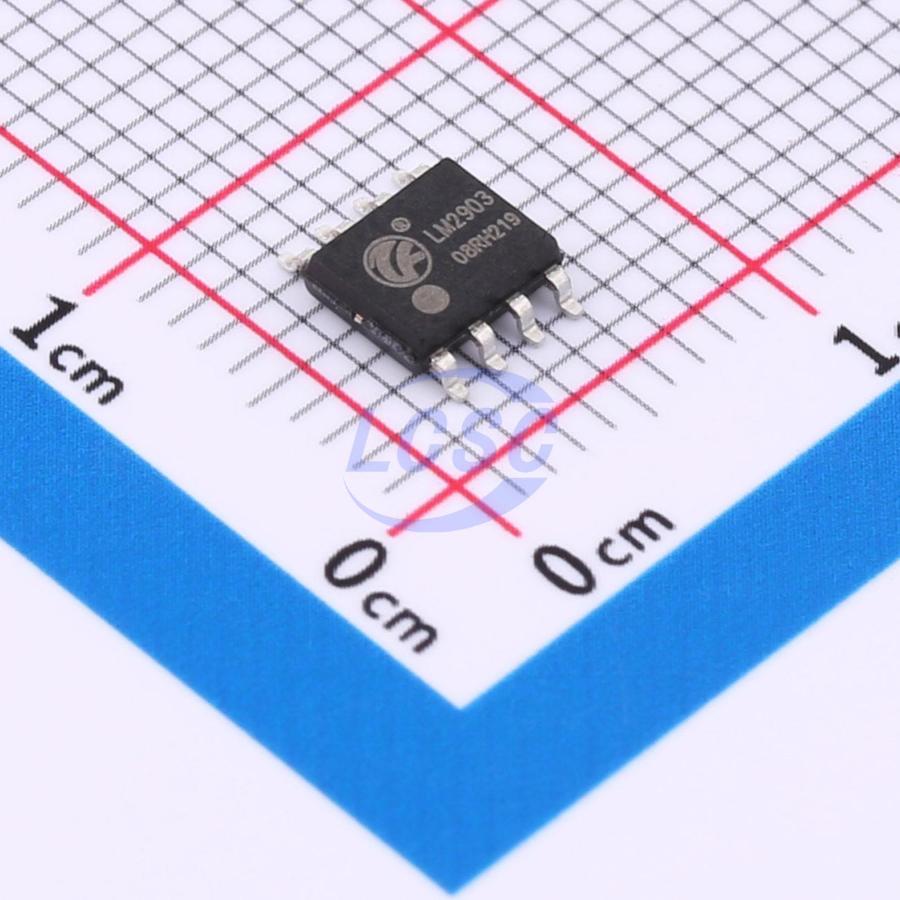

LM2903NS08ARBE
1mV 100nA 2 SOP-8 Linear Comparators
SOP-8RoHSActive
Dual Differential Comparators
- Manufacturer
- GR
- Manufacturer part #
- LM2903NS08ARBE
- Store part #
- C46527062
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,410 in stock
#C46527062
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.31 | ₹63.10 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.43 | ₹1,329.00 |
| 2,500+ | ₹3.96 | ₹9,900.00 |
| 5,000+ | ₹3.59 | ₹17,950.00 |
| 10,000+ | ₹3.40 | ₹34,000.00 |
10 × ₹6.31
₹63.10
excl. GST
₹74.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2903NS08ARBE
₹63.10 for 10 + GST
Specifications
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 900uA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.208 g
Overview
LM2903 contains two independent voltage comparators designed to operate from a single supply over a wide voltage range. Dual supply operation is also possible. Current consumption is independent of the supply voltage. The outputs can be connected to other open-collector outputs to realize wired-AND logic. LM2903 can operate from the standard 5V supply used in digital systems, eliminating the need for an additional power supply.
Key features
- Wide single-supply voltage range: 2V to 32V
- Low output saturation voltage: typical 0.1V @ IOL = 4mA
- Low power consumption: typical 0.9mA @ VCC = 5V
- Low input offset voltage: typical ±1mV
- Dual-supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-collector output
- DIP8/SOP8 package
