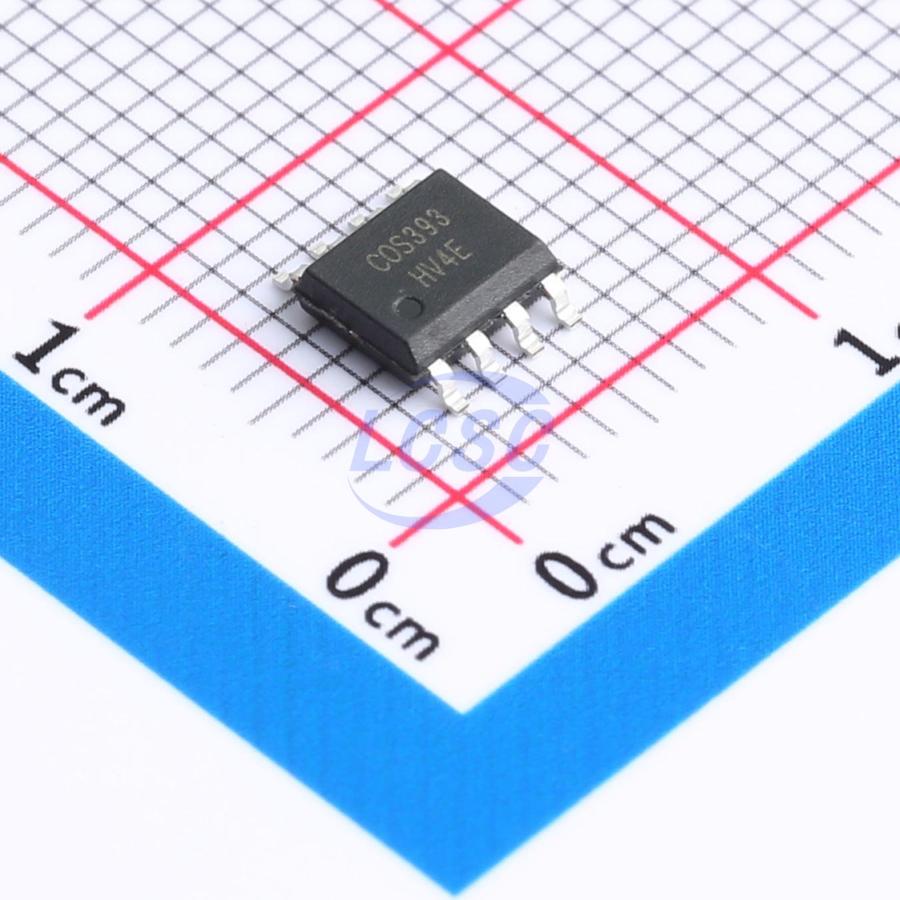

LM2903SR

The LM2903 (dual) and LM2901 (quad) are low-power, low offset voltage differential comparators operated on 2V to 36V single supply or ±1V to ±18V dual supplies. Despite their wide supply range, the LM2903/2901 family provides excellent overall performance and versatility. They have high differential input voltage capability. The common-mode input voltage range includes ground, enabling direct sensing near ground. The output current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. Input offset voltage as low as 2mV make this device family an excellent selection for many applications in consumer, automotive, and industrial electronics.

Applications

• Inspection Equipment
• Threshold Detectors/Discriminators
• Peak and Zero-crossing detectors
• Logic Level Shifting or Translation
• Motor Control: AC Induction Sensor Conditioning
• Weight Scale

Key features

• Wide Supply Range:
• Single Supply: 2V to 36V
• Dual Supplies: ±1V to ±18V
• Low Quiescent Current: 0.4mA (dual)
• Low Input Offset Voltage: 1mV (typical)
• Low Input Offset Current: 5nA (typical)
• Common Mode Input Voltage Range Includes Ground
• Differential Input Voltage Range: ±36V
• Open-Drain Outputs
• Output Compatible with TTL, MOS and CMOS
