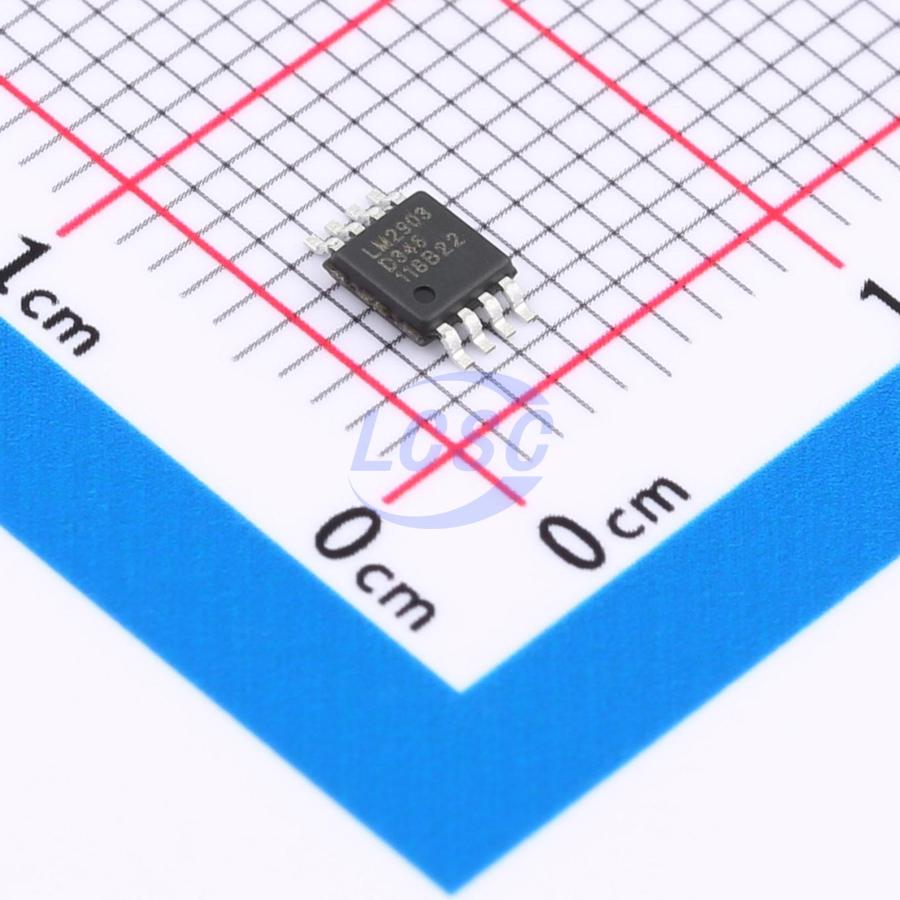

LM2903XM-Q1
800uV 10pA 2 MSOP-8 Linear Comparators
General-purpose high-voltage open-drain output dual comparators
- Manufacturer
- RUNIC
- Manufacturer part #
- LM2903XM-Q1
- Store part #
- C42459432
- Package / case
- MSOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,080 in stock
#C42459432
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.30 | ₹146.50 |
| 50+ | ₹22.73 | ₹1,136.50 |
| 150+ | ₹19.91 | ₹2,986.50 |
| 500+ | ₹16.39 | ₹8,195.00 |
| 2,500+ | ₹14.83 | ₹37,075.00 |
| 4,000+ | ₹13.89 | ₹55,560.00 |
5 × ₹29.30
₹146.50
excl. GST
₹172.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2903XM-Q1
₹146.50 for 5 + GST
Specifications
- Dual Supply
- 1.65V~16V;-16V~-1.65V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 800uV
- Quiescent Current
- 110uA
- Ib - Input Bias Current
- 10pA
- Propagation Delay Time
- 500ns
- Number of Channels
- 2
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 3.3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.106 g
Overview
The LM2903-Q1 is the dual comparator version, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships. It can operate from 3.3V to 32V, and have low power consuming 55μA (TYP) per channel. The LM2903-Q1 consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage. The device is the most cost-effective solutions for applications where low offset voltage, high supply voltage capability, low supply current, and space saving are the primary specifications in circuit design for portable consumer products. The LM2903-Q1 is available in Green SOP8 and MSOP8 and TSSOP8 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Hysteresis Comparators
- Factory Automation & Control
- Industrial Equipment
- Test and Measurement
- Cordless Power Tool
- Vacuum Robot
- Wireless Infrastructure
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Grade 1
- Supply Range: +3.3V to +32V
- Low Supply Current 55μA (TYP) per channel at Vs = 5V
- Common-Mode Input Voltage Range Includes Ground
- Low Output Saturation Voltage
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP TO +125°C
- Micro SIZE PACKAGES: SOP8、MSOP8、 TSSOP8
