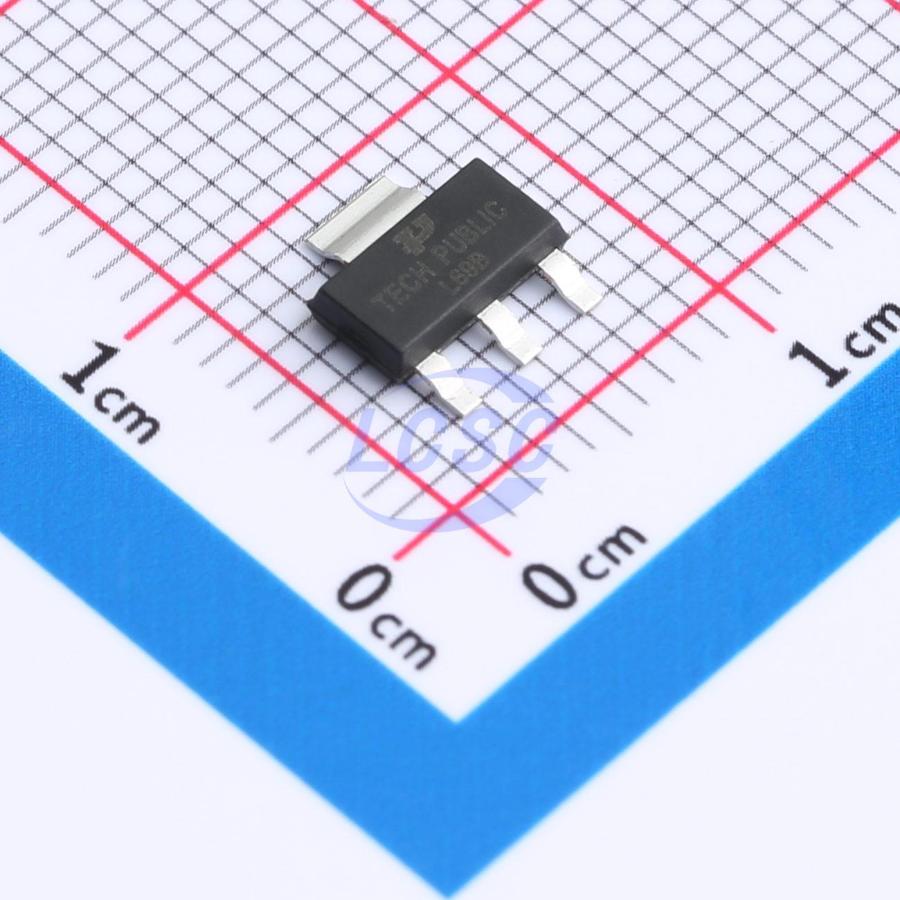

LM2937IMPX-3.3-TP
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
Low Dropout Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM2937IMPX-3.3-TP
- Store part #
- C42394082
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,352 in stock
#C42394082
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.45 | ₹78.45 |
| 10+ | ₹63.03 | ₹630.30 |
| 30+ | ₹55.20 | ₹1,656.00 |
| 100+ | ₹47.59 | ₹4,759.00 |
| 500+ | ₹43.04 | ₹21,520.00 |
| 1,000+ | ₹40.64 | ₹40,640.00 |
1 × ₹78.45
₹78.45
excl. GST
₹92.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2937IMPX-3.3-TP
₹78.45 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 28V
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.324 g
Overview
The is micropower low dropout voltage regulators available in a wide variety of output voltages. These devices feature a very low quiescent current. and thermal limiting protection are provided by the presence of a short circuit at the output and an internal thermal shutdown circuit. Due to the low input-to-output voltage differential and bias current specifications, these devices are ideally suited for battery powered computer, consumer, and industrial equipment where an extension of useful battery life is desirable.
Applications
- Hand - Held Instruments
- Battery Powered Consumer Products
- Test and Measurement Equipment
- Industrial Power Supplies
Key features
- Input Voltage up to 28V
- output current up to 300mA
- output Voltage 3.3V
- 3μA Current at no Load
- ±2% Output Accuracy
- Compact package: SOT - 223
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPMIC5239-3.3YS#C42394084TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,249 | ₹60.91 · 2,249 in stock | View |
 | TP422C33Y3#C42394089TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 281 | ₹72.28 · 281 in stock | View |
