TECH PUBLICDatasheet (PDF)

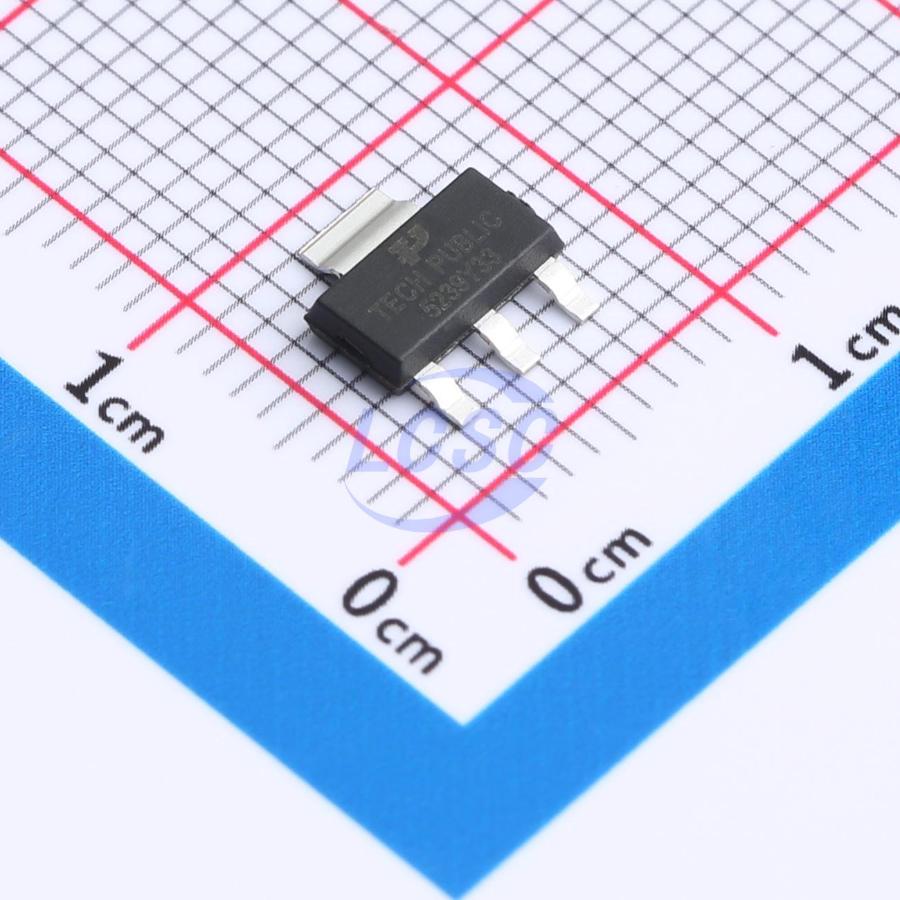

TPMIC5239-3.3YS
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
Low Dropout Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMIC5239-3.3YS
- Store part #
- C42394084
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,249 in stock
#C42394084
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.91 | ₹60.91 |
| 10+ | ₹47.64 | ₹476.40 |
| 30+ | ₹41.98 | ₹1,259.40 |
| 100+ | ₹34.81 | ₹3,481.00 |
| 500+ | ₹31.77 | ₹15,885.00 |
| 1,000+ | ₹29.81 | ₹29,810.00 |
1 × ₹60.91
₹60.91
excl. GST
₹71.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPMIC5239-3.3YS
₹60.91 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 28V
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.323 g
Overview
The is micropower low dropout voltage regulators available in a wide variety of output voltages. These devices feature a very low quiescent current. and thermal limiting protection are provided by the presence of a short circuit at the output and an internal thermal shutdown circuit. Due to the low input-to-output voltage differential and bias current specifications, these devices are ideally suited for battery powered computer, consumer, and industrial equipment where an extension of useful battery life is desirable.
Applications
- Hand - Held Instruments
- Battery Powered Consumer Products
- Test and Measurement Equipment
- Industrial Power Supplies
Key features
- Input Voltage up to 28V
- output current up to 300mA
- output Voltage 3.3V
- 6μA Current at no Load
- ±2% Output Accuracy
- Compact package: SOT - 223
