HGSEMIDatasheet (PDF)

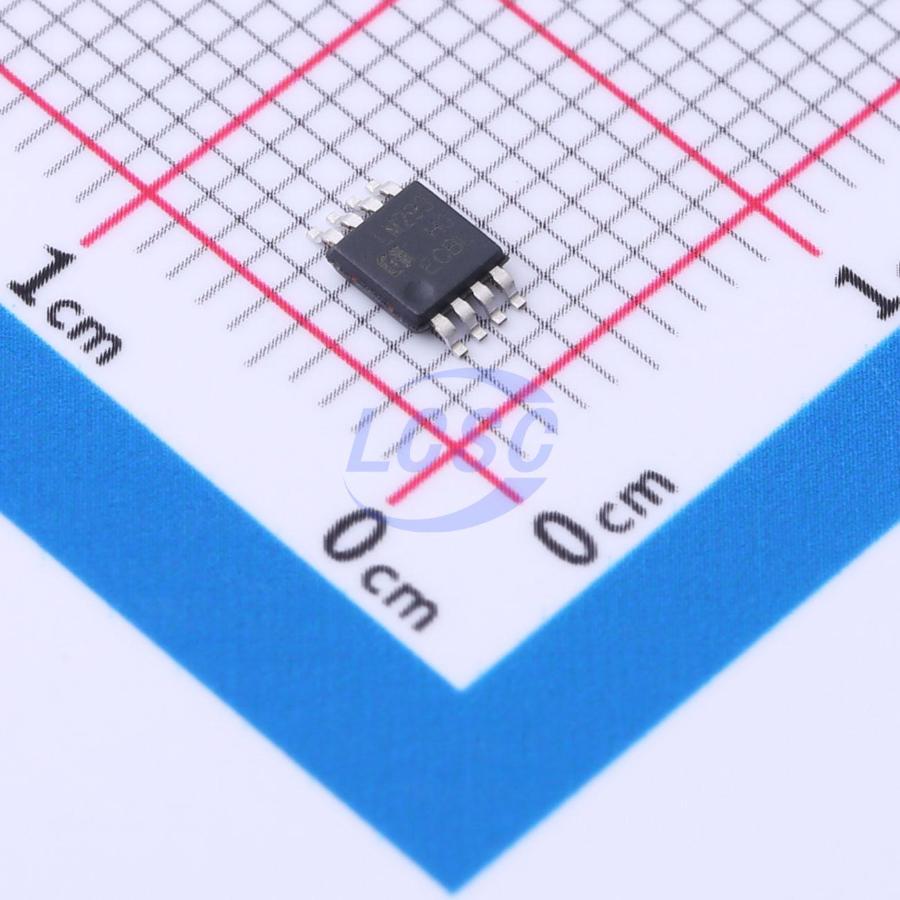

LM293MM/TR
2mV 5nA 2 MSOP-8 Linear Comparators
MSOP-8RoHSActive
Dual Differential Comparators
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM293MM/TR
- Store part #
- C5310832
- Package / case
- MSOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,375 in stock
#C5310832
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.77 | ₹63.85 |
| 50+ | ₹10.16 | ₹508.00 |
| 150+ | ₹8.86 | ₹1,329.00 |
| 500+ | ₹7.89 | ₹3,945.00 |
| 3,000+ | ₹6.77 | ₹20,310.00 |
| 6,000+ | ₹6.38 | ₹38,280.00 |
5 × ₹12.77
₹63.85
excl. GST
₹75.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM293MM/TR
₹63.85 for 5 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 5nA
- Quiescent Current
- 800uA
- Output Mode
- TTL;MOS;CMOS
- Propagation Delay Time
- 1.3us
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
LM393/LM293 is a dual voltage comparator with open-drain output, supporting single or dual supply operation. The device features excellent temperature stability and output short-circuit protection. It can be directly powered by a standard 5V supply in digital systems, requiring no additional power source.
Applications
- Voltage discriminator circuit
- Voltage conversion circuit
Key features
- Single supply voltage range: 2V~32V
- Low output saturation voltage: typical 0.1V @ IOL=4mA
- Low power consumption: typical 0.6mA @ VCC=5V
- Low input offset voltage: typical ±2mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package types: DIP-8, SOP-8, MSOP-8, TSSOP-8, SOT-23-8, DFN-8
