GRDatasheet (PDF)

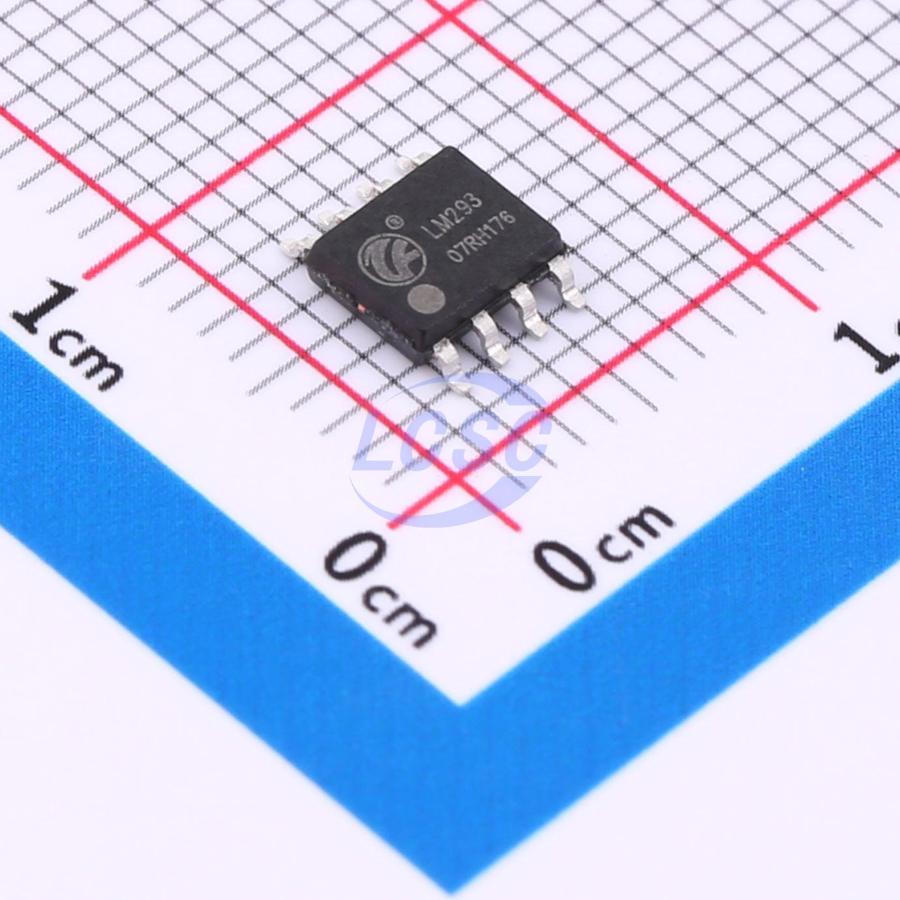

LM293NS08ARBE
1mV 100nA 2 SOP-8 Linear Comparators
SOP-8RoHSActive
Dual Differential Comparators
- Manufacturer
- GR
- Manufacturer part #
- LM293NS08ARBE
- Store part #
- C46527060
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,135 in stock
#C46527060
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.74 | ₹53.70 |
| 50+ | ₹8.49 | ₹424.50 |
| 150+ | ₹7.37 | ₹1,105.50 |
| 500+ | ₹6.52 | ₹3,260.00 |
| 2,500+ | ₹5.85 | ₹14,625.00 |
| 5,000+ | ₹5.52 | ₹27,600.00 |
5 × ₹10.74
₹53.70
excl. GST
₹63.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM293NS08ARBE
₹53.70 for 5 + GST
Specifications
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 900uA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -25℃~+85℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.206 g
Overview
The LM293 consists of two independent voltage comparators designed for single-supply operation over a wide voltage range. It can also operate from dual supplies, with current consumption independent of supply voltage. The outputs can be connected to other open-drain outputs to implement wired-AND functions. The device can operate from a standard 5V supply in digital systems without requiring additional power supplies.
Applications
- Level shifting circuit
- Signal comparison circuit
- Microcontroller interface
- Voltage monitoring
- Differential signal processing
Key features
- Wide single supply voltage range: 2V ~ 32V
- Low output saturation voltage: 0.1V@IOL=4mA (typical)
- Low power consumption: 0.9mA@VCC=5V (typical)
- Low input offset voltage: ±1mV (typical)
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- DIP8/SOP8 package
