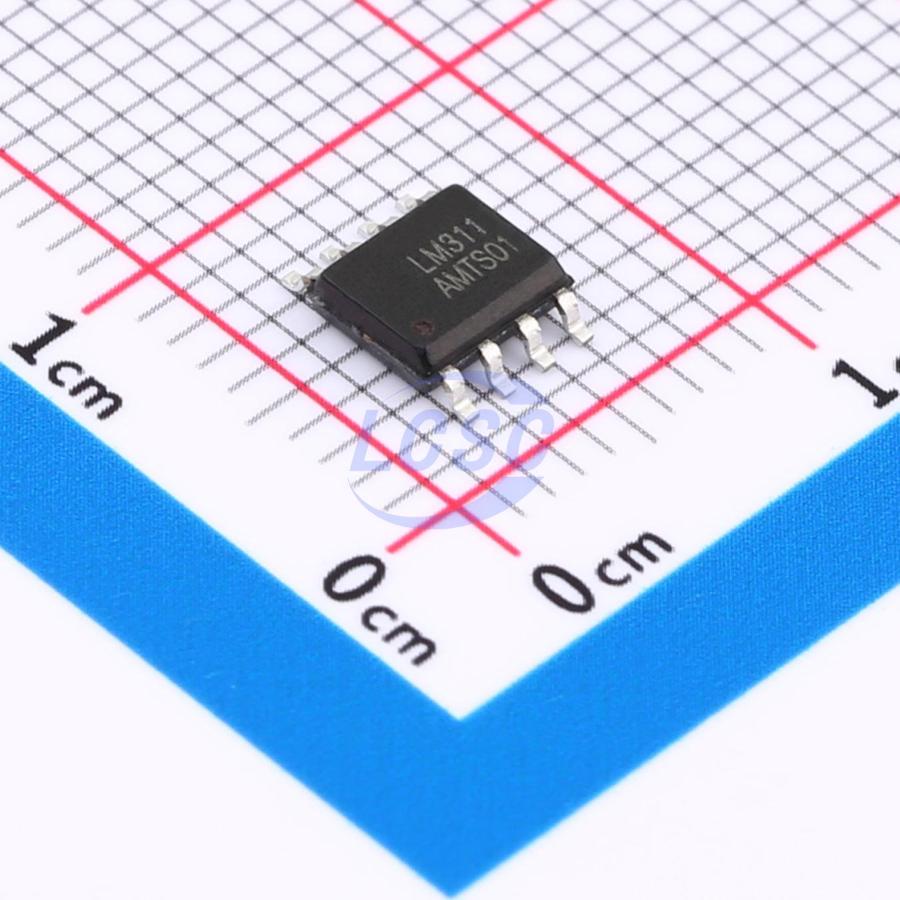

LM311DR-CN
2mV 100nA 1 SOP-8 Linear Comparators RoHS
Single Comparator
- Manufacturer
- ChipNobo
- Manufacturer part #
- LM311DR-CN
- Store part #
- C42436869
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,495 in stock
#C42436869
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.13 | ₹60.65 |
| 50+ | ₹9.38 | ₹469.00 |
| 150+ | ₹8.00 | ₹1,200.00 |
| 500+ | ₹6.99 | ₹3,495.00 |
| 2,500+ | ₹6.48 | ₹16,200.00 |
| 4,000+ | ₹6.07 | ₹24,280.00 |
5 × ₹12.13
₹60.65
excl. GST
₹71.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM311DR-CN
₹60.65 for 5 + GST
Specifications
- Features
- Enable/shutdown function
- Dual Supply
- 1.75V~15V;-15V~-1.75V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 100nA
- Output Mode
- TTL
- Number of Channels
- 1
- Input Offset Current(Ios)
- 6nA
- Operating Temperature
- -20℃~+85℃
- Response Time (tr)
- 165ns
- Single Supply
- 3.5V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.146 g
Overview
The LM311DR-CN is a single-channel high-speed voltage comparator. This device is designed to operate over a wide range of supply voltages, including ±15V supplies used with op amps and 5V supplies used in logic systems. Its output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays, and can switch voltages up to 40V at currents up to 50mA. All inputs and outputs can be isolated from system ground. The output can drive loads referenced to ground, VCC+, or VCC-. Offset balancing and strobe functions are available, and outputs can be wire-OR connected. When the strobe input is low, the output is in the off state regardless of the differential input conditions.
Applications
- Desktop computers
- Body control modules
- White goods
- Building automation
- Oscillators
- Peak detectors
Key features
- Fast response time: 165ns
- Strobe function
- Maximum input bias current: 300nA
- Maximum input offset current: 70nA
- Single 5V supply operation
- Q-Temp automotive qualification for high-reliability automotive applications, with configuration control and print support, compliant with automotive standards
