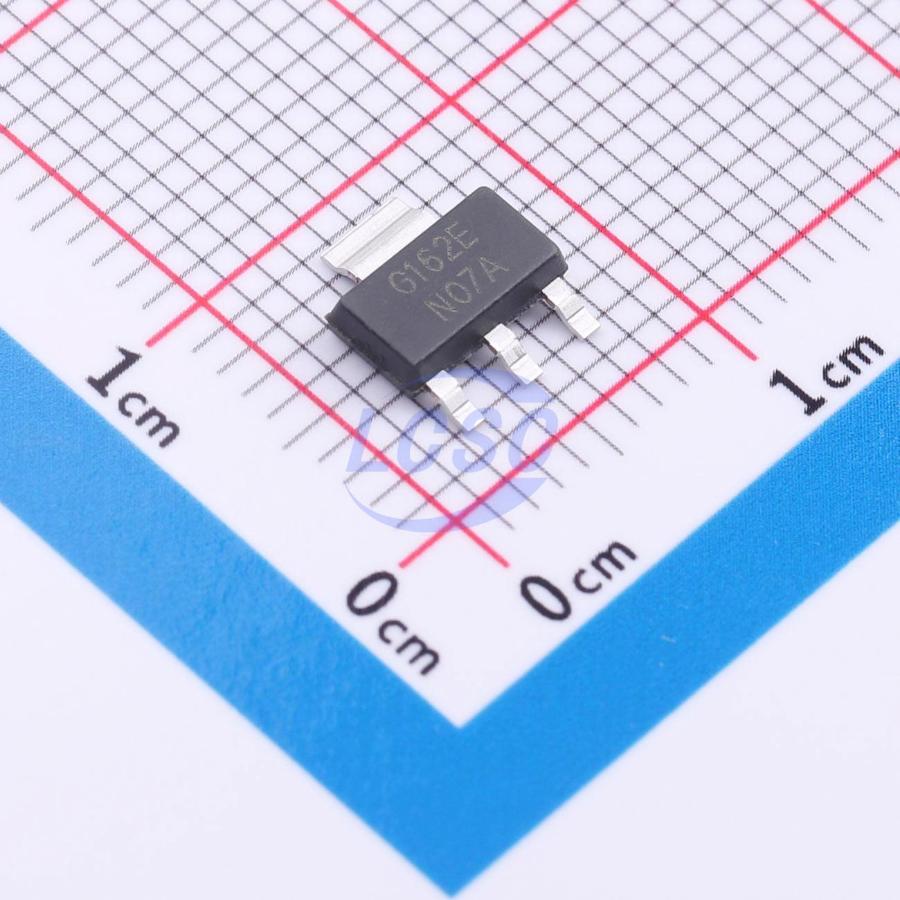

GREENMICRO

LM317L162

1.2V~37V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-223RoHSActive

IC REG LINEAR 1.2V~37V 1.5A SOT-223

Manufacturer: GREENMICRO
Manufacturer part #: LM317L162
Store part #: C51026321
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,825 in stock

#C51026321

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.58	₹57.90
50+	₹9.17	₹458.50
150+	₹7.96	₹1,194.00
500+	₹7.06	₹3,530.00
2,500+	₹6.34	₹15,850.00
5,000+	₹5.98	₹29,900.00

Quantity (min 5, multiples of 5)

5 × ₹11.58

₹57.90

excl. GST

₹68.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM317L162

₹57.90 for 5 + GST

Specifications

Output Voltage: 1.2V~37V
Number of Outputs: 1
Operating Temperature: -20℃~+125℃@(Ta)
Output Configuration: Positive
Output Current: 1.5A
Operating Voltage: 40V
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.238 g

Overview

This device is an adjustable 3-terminal positive voltage regulator capable of supplying more than 1.5A over an output voltage range of 1.25V to 37V. Its typical quiescent current is 1.5mA. The device requires only two external resistors to set the output voltage, and features a typical line regulation of 1mV and load regulation of 7mV. It is highly versatile, suitable for programmable output regulation and on-board local regulation. By connecting a fixed resistor between the ADJUST and OUTPUT pins, it can also be used as a precision current regulator. An optional output capacitor can be used to improve transient response. The output voltage is calculated as: V_O = V_REF(1 + R2/R1) + (I_ADJ × R2), where I_ADJ has a typical value of 50uA, which is negligible in most applications. C_ADJ is recommended to improve ripple rejection; C_I is recommended to provide adequate bypassing, especially when the regulator is located far from the power supply filter capacitor. C_O improves transient response but is not required for stability. If C_ADJ is used, protection diode D2 is recommended; if C_O is used, protection diode D1 is recommended, to provide a low-impedance discharge path.
