STDatasheet (PDF)

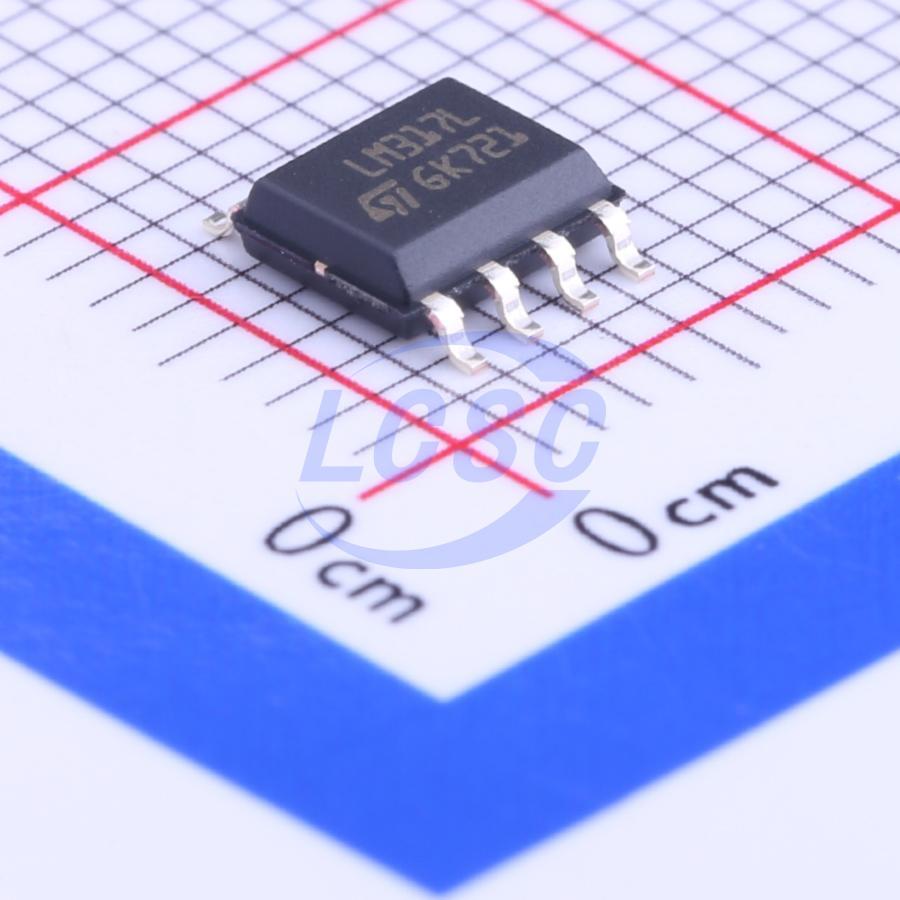

LM317LD13TR
1.2V~37V Positive Adjustable SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
Low Current 1.2 to 37 V Adjustable Regulator
- Manufacturer
- ST
- Manufacturer part #
- LM317LD13TR
- Store part #
- C81457
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,315 in stock
#C81457
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.75 | ₹73.75 |
| 50+ | ₹11.68 | ₹584.00 |
| 150+ | ₹10.15 | ₹1,522.50 |
| 500+ | ₹9.00 | ₹4,500.00 |
| 2,500+ | ₹7.90 | ₹19,750.00 |
| 5,000+ | ₹7.44 | ₹37,200.00 |
5 × ₹14.75
₹73.75
excl. GST
₹87.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM317LD13TR
₹73.75 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.339 g
Overview
The LM217L/LM317L are monolithic integrated circuits in SO-8 and TO-92 packages intended for use as positive adjustable voltage regulators. They are designed to supply up to 100 mA of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Key features
- Outuput voltage range: 1.2 to 37 V
- Output current up to 100 mA
- Line regulation typ. 0.01%
- Load regulation typ. 0.1%
- Thermal overload protection
- Short-circuit protection
- Output transition safe area compensation
- Floating operation for high voltage applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317LDR2G#C7940onsemi · SOIC-8 | onsemi | SOIC-8 | 1,44,885 | ₹15.00 · 1,44,885 in stock | View |
 | LM317LM/NOPB#C2867749TI · SOIC-8 | TI | SOIC-8 | 86 | ₹82.79 · 86 in stock | View |
 | LM317LM/TR#C434493HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,595 | ₹15.31 · 1,595 in stock | View |
 | LM217LD13TR#C7925ST · SOIC-8 | ST | SOIC-8 | 2,980 | ₹21.71 · 2,980 in stock | View |
 | LM317LDR2G-HXY#C19626993HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 195 | ₹25.43 · 195 in stock | View |
