onsemiDatasheet (PDF)

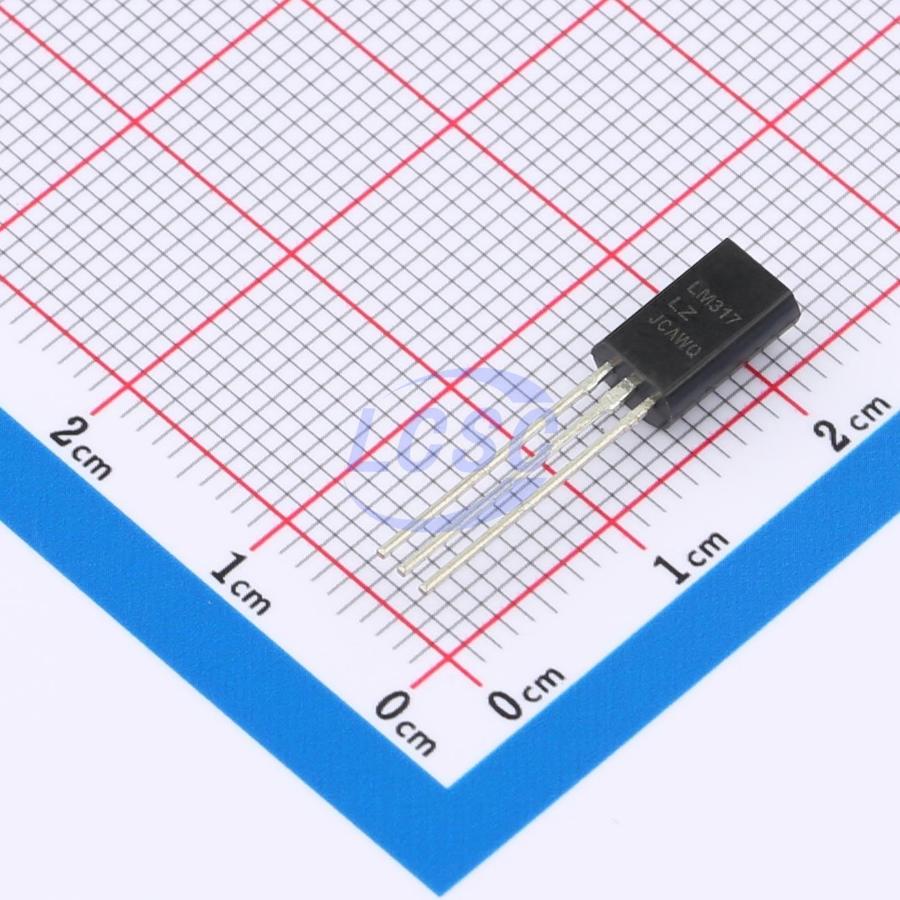

LM317LZG
1.2V~37V Positive Adjustable TO-92-8mm Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-8mmROHS3 CompliantActive
Voltage Regulator Adjustable Output, Positive
- Manufacturer
- onsemi
- Manufacturer part #
- LM317LZG
- Store part #
- C274646
- Package / case
- TO-92-8mm
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,485 in stock
#C274646
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.63 | ₹228.15 |
| 50+ | ₹35.76 | ₹1,788.00 |
| 150+ | ₹31.54 | ₹4,731.00 |
| 500+ | ₹25.12 | ₹12,560.00 |
| 2,500+ | ₹22.77 | ₹56,925.00 |
| 5,000+ | ₹21.37 | ₹1,06,850.00 |
5 × ₹45.63
₹228.15
excl. GST
₹269.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per bag
LM317LZG
₹228.15 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.214 g
Overview
The LM317L is an adjustable 3−terminal positive voltage regulator capable of supplying in excess of 100 mA over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making them essentially blow−out proof. The LM317L serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317L can be used as a precision current regulator.
Key features
- Output Current in Excess of 100 mA
- Output Adjustable Between 1.2 V and 37 V
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Floating Operation for High Voltage Applications
- Standard 3−Lead Transistor Package
- Eliminates Stocking Many Fixed Voltages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
