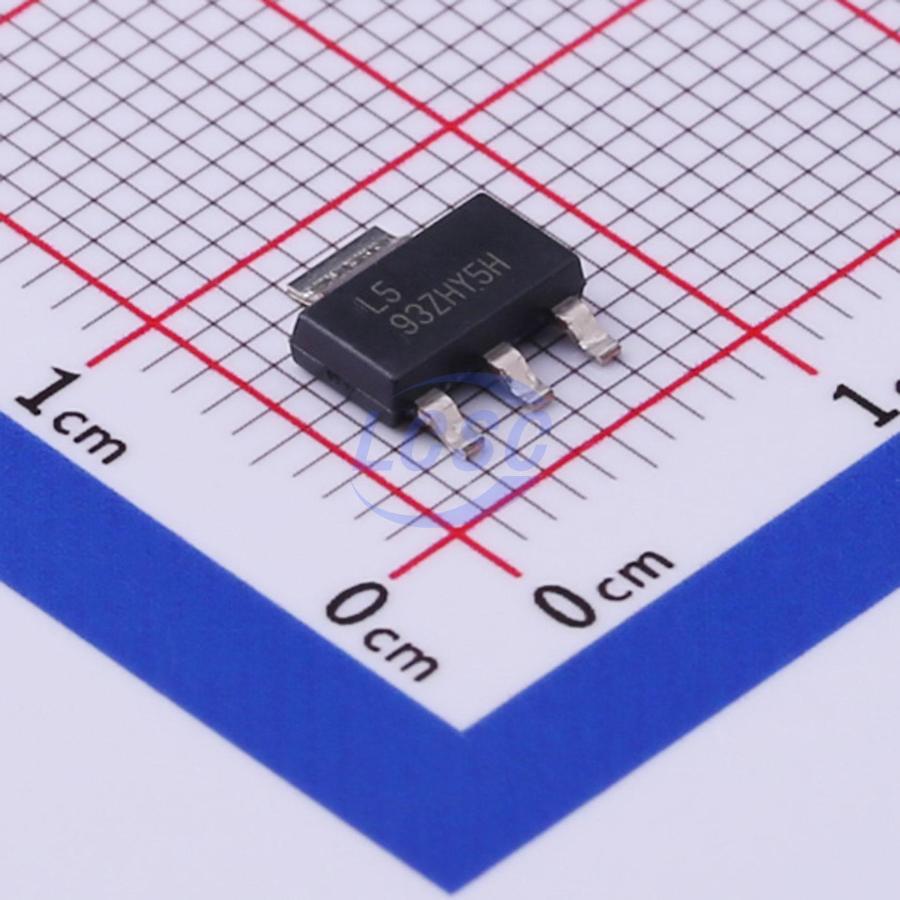

LM317MQDCYR
1.25V~37V Positive Adjustable SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
500mA, 40V, adjustable linear regulator for automotive applications
- Manufacturer
- TI
- Manufacturer part #
- LM317MQDCYR
- Store part #
- C496125
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,605 in stock
#C496125
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.98 | ₹77.98 |
| 10+ | ₹63.42 | ₹634.20 |
| 30+ | ₹56.25 | ₹1,687.50 |
| 100+ | ₹48.87 | ₹4,887.00 |
| 500+ | ₹44.53 | ₹22,265.00 |
| 1,000+ | ₹42.36 | ₹42,360.00 |
1 × ₹77.98
₹77.98
excl. GST
₹92.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM317MQDCYR
₹77.98 for 1 + GST
Specifications
- Output Voltage
- 1.25V~37V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 40V
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.387 g
Overview
The LM317M is an adjustable 3-terminal positive voltage regulator capable of supplying more than 500-mA over an output-voltage range of 1.25-V to 37-V. The LM317M is exceptionally easy to use and requires only two external resistors to set the output. Furthermore, both line and load regulation are better than standard fixed regulators. In addition to having higher performance than fixed regulators, the LM317M includes on-chip current limiting, thermal-overload protection, and safeoperating-area protection. All overload protection remains fully functional if the ADJUST terminal is disconnected.
Applications
- Electronic Point-of-Sales
- Medical/Health/Fitness Applications
- Printers
- Appliances/White Goods
- TV/Set-Top Box
Key features
- Output Voltage Range Adjustable from 1.25-V to 37-V
- Output Current Greater Than 500-mA
- Internal Short-Circuit Current Limiting
- Thermal-Overload Protection
- Output Safe-Area Compensation
- Q Devices Meet Automotive Performance Requirements
- Customer-Specific Configuration Control Can Be Supported for Q Devices Along With Major-Change Approval
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317AEMPX/NOPB#C68487TI · SOT-223-4 | TI | SOT-223-4 | 17,660 | ₹144.33 · 17,660 in stock | View |
 | LM317EMPX/NOPB#C352843TI · SOT-223-4 | TI | SOT-223-4 | 14,614 | ₹149.99 · 14,614 in stock | View |
 | LM317MDCYR#C840113TI · SOT-223-4 | TI | SOT-223-4 | 3,445 | ₹84.09 · 3,445 in stock | View |
 | LM317MQDCYRG4#C544564TI · SOT-223-4 | TI | SOT-223-4 | 5 | ₹117.79 · 5 in stock | View |
 | LM317MDCYR-TP#C41407993TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 1,285 | ₹19.71 · 1,285 in stock | View |
