onsemiDatasheet (PDF)

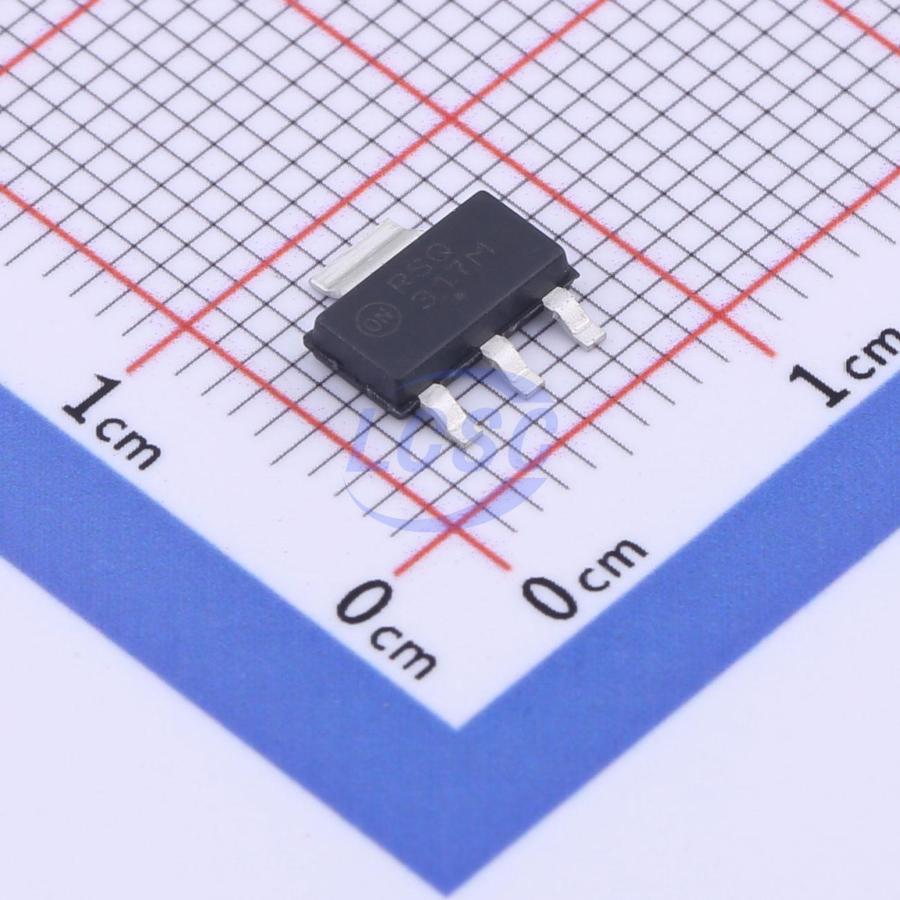

LM317MSTT3G
1.2V~37V Positive Adjustable SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS3 CompliantActive
Voltage Regulator Adjustable Output, Positive 500 mA
- Manufacturer
- onsemi
- Manufacturer part #
- LM317MSTT3G
- Store part #
- C894888
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,780 in stock
#C894888
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.92 | ₹219.60 |
| 50+ | ₹33.95 | ₹1,697.50 |
| 150+ | ₹29.67 | ₹4,450.50 |
| 500+ | ₹24.34 | ₹12,170.00 |
| 2,500+ | ₹21.98 | ₹54,950.00 |
| 4,000+ | ₹20.55 | ₹82,200.00 |
5 × ₹43.92
₹219.60
excl. GST
₹259.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM317MSTT3G
₹219.60 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 500mA
- Output Type
- Adjustable
- Features
- Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The LM317M is an adjustable three−terminal positive voltage regulator capable of supplying in excess of 500 mA over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow−out proof. The LM317M serves a wide variety of applications including local, on−card regulation. This device also makes an especially simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317M can be used as a precision current regulator.
Applications
- local, on−card regulation
- adjustable switching regulator
- programmable output regulator
- precision current regulator
Key features
- Output Current in Excess of 500 mA
- Output Adjustable between 1.2 V and 37 V
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Floating Operation for High Voltage Applications
- Eliminates Stocking Many Fixed Voltages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
