Slkor

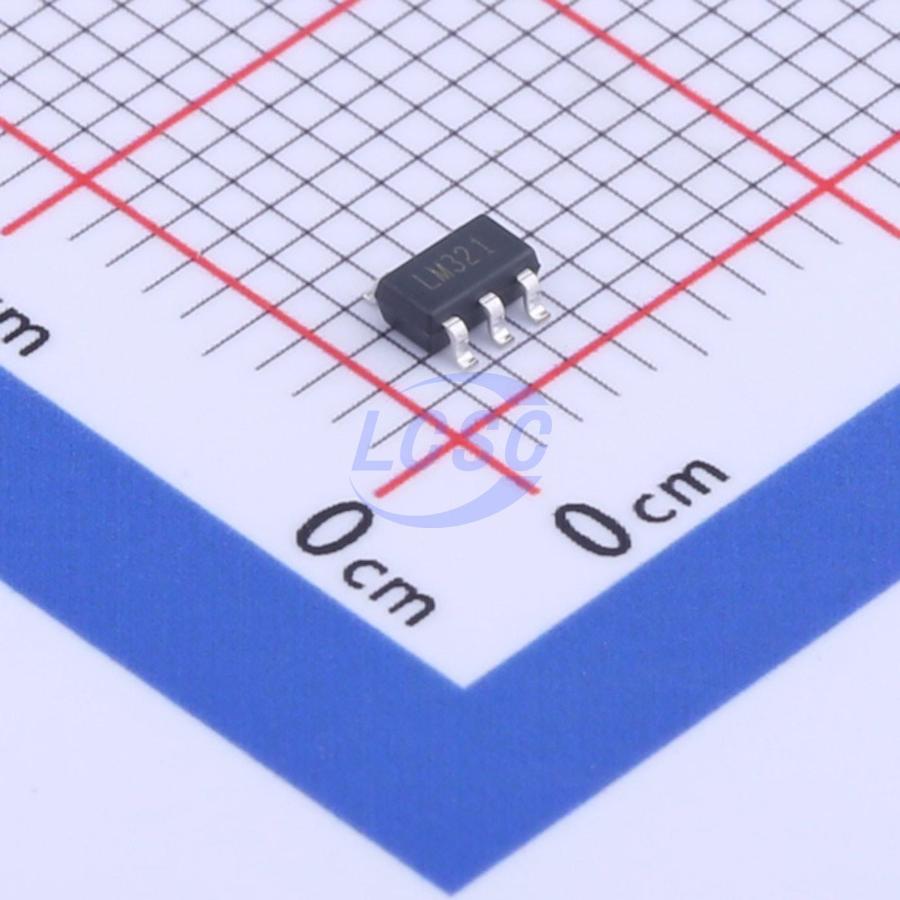

LM321

40mA 1 2mV 400V/ms 45nA 90dB 430uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Low Power Single Operational Amplifier

Manufacturer: Slkor
Manufacturer part #: LM321
Store part #: C880719
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

31,070 in stock

#C880719

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹8.39	₹83.90
100+	₹6.69	₹669.00
300+	₹5.85	₹1,755.00
3,000+	₹4.86	₹14,580.00
6,000+	₹4.35	₹26,100.00
9,000+	₹4.09	₹36,810.00

Quantity (min 10, multiples of 10)

10 × ₹8.39

₹83.90

excl. GST

₹99.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM321

₹83.90 for 10 + GST

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 3nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 45nA
Common Mode Rejection Ratio(CMRR): 90dB
Quiescent Current: 430uA
Dual Supply: -12V~12V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.037 g

Overview

LM321 is a low power, wide power range performance operational amplifier; The static current is only 430 μA per amplifier (5V) with high unit gain frequency and A voltage swing rate of 0.4 V/μs. Input common model circuit includes ground, so the device can operate in single - and dual - power applications. It can also comfortably drive large capacity loads
