JSMSEMIDatasheet (PDF)

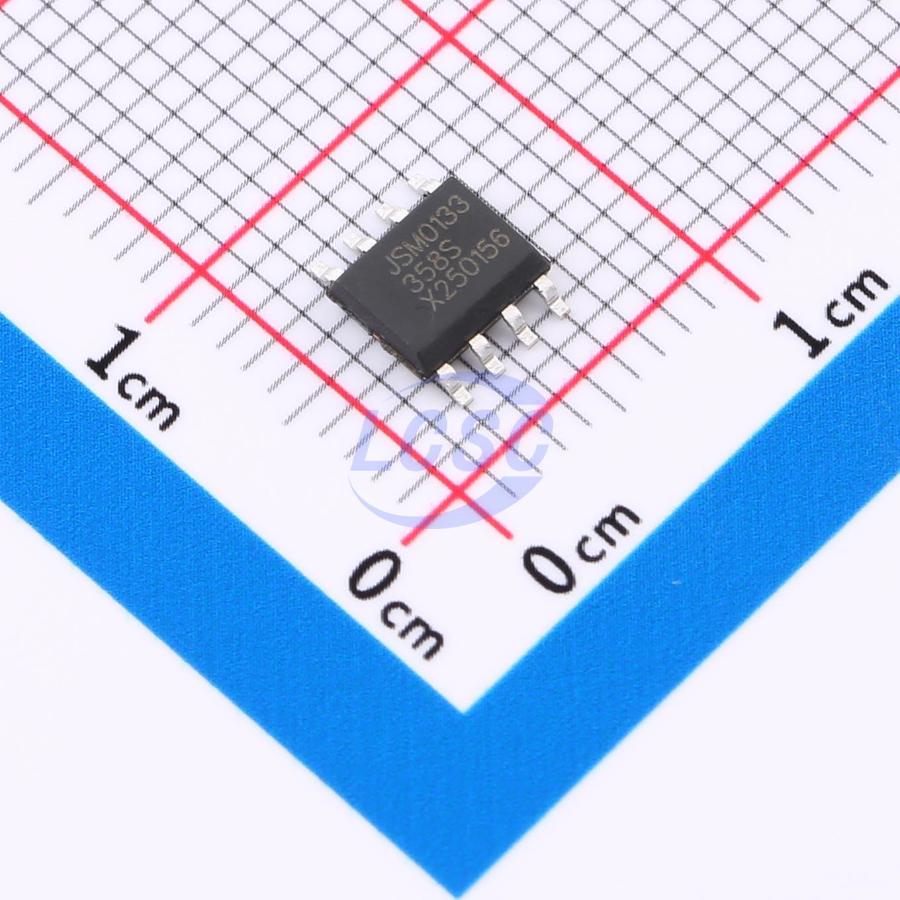

LM358
30mA 2 7mV 400V/ms 20nA 80dB 800uA 1MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Dual Operational Amplifiers
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM358
- Store part #
- C5296727
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29,310 in stock
#C5296727
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.01 | ₹50.10 |
| 100+ | ₹4.04 | ₹404.00 |
| 300+ | ₹3.52 | ₹1,056.00 |
| 1,000+ | ₹3.11 | ₹3,110.00 |
| 4,000+ | ₹2.96 | ₹11,840.00 |
| 8,000+ | ₹2.86 | ₹22,880.00 |
10 × ₹5.01
₹50.10
excl. GST
₹59.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM358
₹50.10 for 10 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 20nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current
- 800uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.16 g
Overview
The LM358 consists of two independent high gain, internally frequency compensated operational amplifier. It can be operated from a single power supply and also split power supplies.
Applications
- General purpose amplifier.
- Transducer amplifier.
Key features
- Internally frequency compensated for unity gain.
- Wide power supply range 3V - 32V.
- Input common - mode voltage range include ground.
- Large DC voltage gain.
