WPMtek

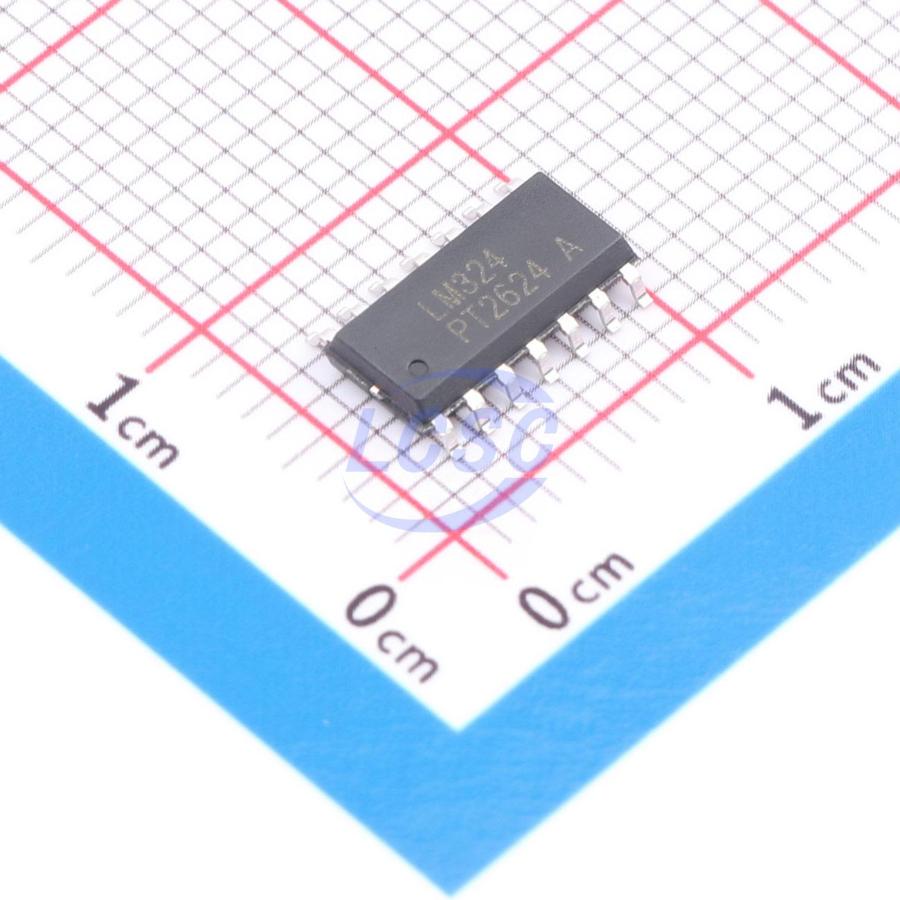

LM324

45nA 500uA 1.2MHz SOP-14 Audio Amplifiers RoHS

SOP-14ROHS CompliantActive

Quad Operational Amplifier

Manufacturer: WPMtek
Manufacturer part #: LM324
Store part #: C55336053
Package / case: SOP-14
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C55336053

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.86	₹109.30
50+	₹17.27	₹863.50
150+	₹15.31	₹2,296.50
500+	₹12.85	₹6,425.00
3,000+	₹11.76	₹35,280.00
6,000+	₹11.10	₹66,600.00

Quantity (min 5, multiples of 5)

5 × ₹21.86

₹109.30

excl. GST

₹128.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM324

₹109.30 for 5 + GST

Specifications

number of channels: 4
Ib - Input Bias Current: 45nA
Operating Temperature: -40℃~+85℃
Input Offset Current(Ios): 5nA
Vos - Input Offset Voltage: 3mV
Output Current: 20mA
Common Mode Rejection Ratio (CMRR): 70dB
Quiescent Current: 500uA
Gain Bandwidth Product: 1.2MHz
Input Offset Voltage Drift(Vos TC): 7uV/℃
Single Supply: 3V~32V
Dual Supply: 1.5V~16V;-16V~-1.5V
Slew Rate: 500V/ms
Noise density(eN): 40nV/√Hz

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.245 g
