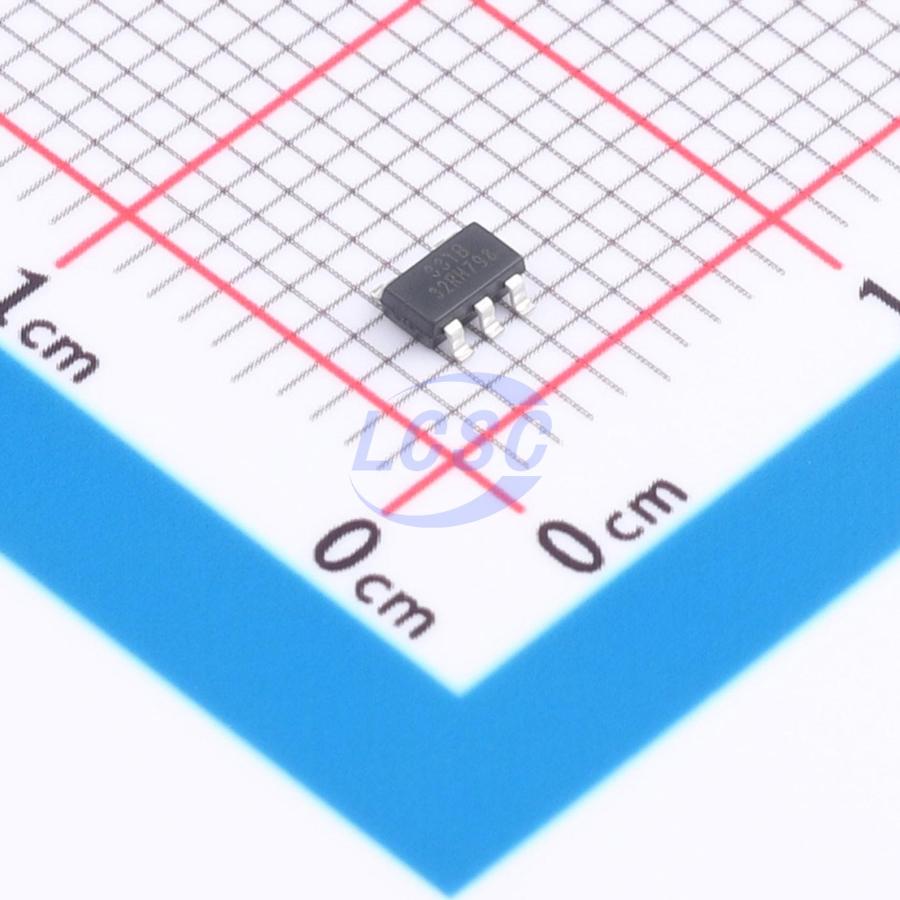

LM331BLT05ARCQ
1mV 100nA 1 SOT-23-5 Linear Comparators
- Manufacturer
- GR
- Manufacturer part #
- LM331BLT05ARCQ
- Store part #
- C51892204
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,060 in stock
#C51892204
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.53 | ₹75.30 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.19 | ₹1,557.00 |
| 3,000+ | ₹4.60 | ₹13,800.00 |
| 6,000+ | ₹4.13 | ₹24,780.00 |
| 9,000+ | ₹3.90 | ₹35,100.00 |
10 × ₹7.53
₹75.30
excl. GST
₹88.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM331BLT05ARCQ
₹75.30 for 10 + GST
Specifications
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 900uA
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
The LM331 is a single-comparator version whose output can be connected to other open-collector outputs to implement wired-AND logic. The device operates from a single supply voltage of 2V to 36V. The LM331 incorporates a voltage comparator designed to operate from a single supply over a wide voltage range. For applications in portable consumer product circuit designs where low offset voltage, high supply voltage capability, low supply current, and space savings are the primary specifications, this device offers the most cost-effective solution.
Applications
- Signal vs. reference voltage comparison
- Level shifting
Key features
- Wide single supply voltage range: 2V~36V
- Low output saturation voltage: 0.1V @ IOL=4mA (typical)
- Low power consumption: 0.9mA @ VCC=5V (typical)
- Low input offset voltage: ±1mV (typical)
- Differential input voltage range: ±VCC
- Open-drain output
