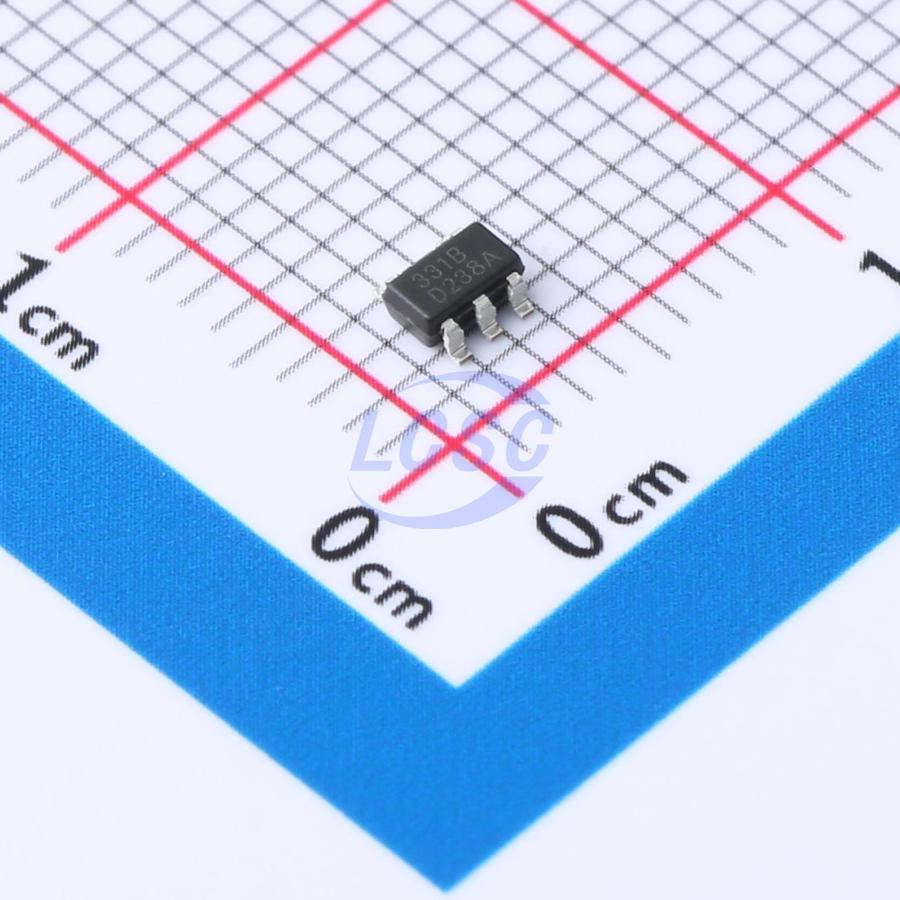

LM331BXF
5mV 10pA 1 SOT23-5 Linear Comparators
General-Purpose High-Voltage Open-Drain Output Single Comparator
- Manufacturer
- RUNIC
- Manufacturer part #
- LM331BXF
- Store part #
- C5372419
- Package / case
- SOT23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C5372419
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.37 | ₹81.85 |
| 50+ | ₹12.22 | ₹611.00 |
| 150+ | ₹10.16 | ₹1,524.00 |
| 500+ | ₹8.61 | ₹4,305.00 |
5 × ₹16.37
₹81.85
excl. GST
₹96.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM331BXF
₹81.85 for 5 + GST
Specifications
- Dual Supply
- 1.5V~16V;-16V~-1.5V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 5mV
- Quiescent Current
- 65uA
- Ib - Input Bias Current
- 10pA
- Propagation Delay Time
- 300ns
- Number of Channels
- 1
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The LM331 is the single comparator version, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships. It can operate from 3V to 32V, and have low power consuming 65uA (TYP) per channel. The LM331 consist one voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage. The device is the most cost-effective solutions for applications where low offset voltage, high supply voltage capability, low supply current, and space saving are the primary specifications in circuit design for portable consumer products. The LM331 is available in Green SOT23-5 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Hysteresis Comparators
- Factory Automation & Control
- Industrial Equipment
- Test and Measurement
- Cordless Power Tool
- Vacuum Robot
- Wireless Infrastructure
Key features
- Supply Range: ±3V to +32V
- Low Supply Current 65μA (TYP) per channel at Vs = 5V
- Low Output Saturation Voltage
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP TO ±125°C
- Micro SIZE PACKAGES: SOT23-5
