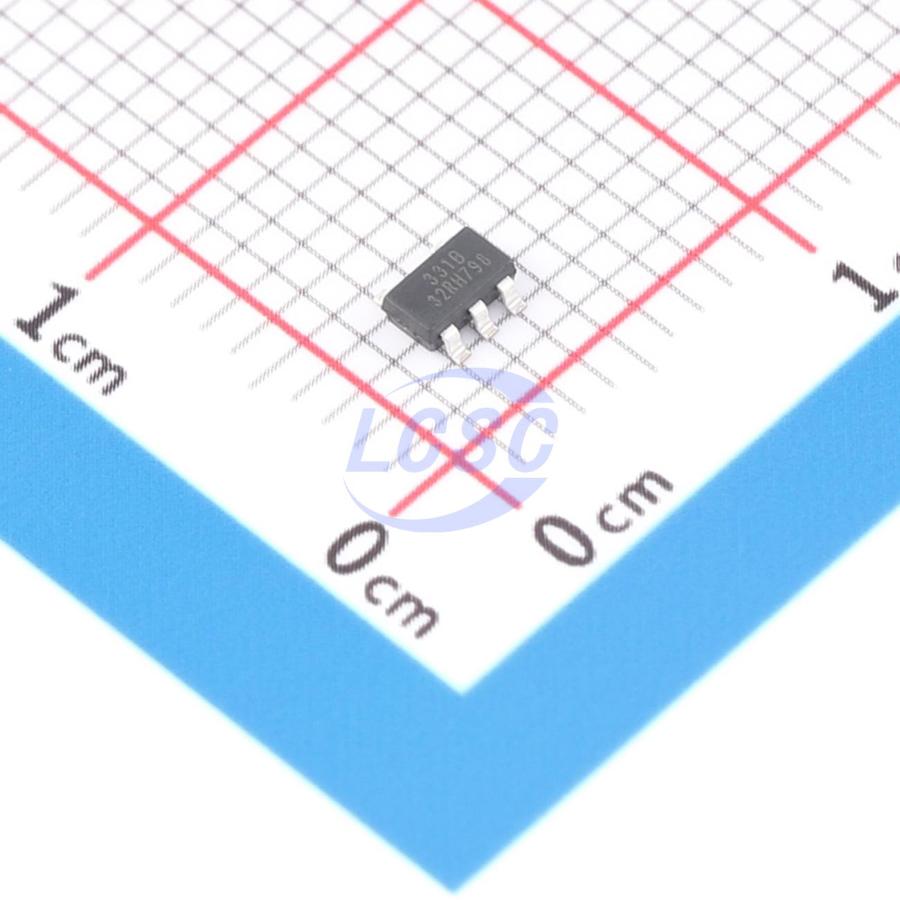

LM331BXF-MS
2mV 1nA 1 SOT-23-5 Linear Comparators
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LM331BXF-MS
- Store part #
- C30200455
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,755 in stock
#C30200455
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.33 | ₹71.65 |
| 50+ | ₹11.39 | ₹569.50 |
| 150+ | ₹9.91 | ₹1,486.50 |
| 500+ | ₹8.81 | ₹4,405.00 |
| 2,500+ | ₹7.92 | ₹19,800.00 |
| 5,000+ | ₹7.49 | ₹37,450.00 |
5 × ₹14.33
₹71.65
excl. GST
₹84.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM331BXF-MS
₹71.65 for 5 + GST
Specifications
- Dual Supply
- 1.5V~16V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 1nA
- Quiescent Current
- 75uA
- Output Mode
- TTL;CMOS
- Number of Channels
- 1
- Propagation Delay Time
- 485ns
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
LM331BXF-MS is a voltage comparator IC offering lower offset voltage, higher supply voltage capability, lower supply current, lower propagation delay, wider operating temperature range, and enhanced ESD performance. The device supports both single-supply and dual-supply operation. For dual-supply configuration, the supply voltage ranges from ±1.5V to ±16V, with VS at least 1.5V above the common-mode input voltage. The output is compatible with TTL and CMOS logic levels, and leakage current is independent of supply voltage. Outputs can be connected with other open-drain outputs to implement a wired-AND configuration. The LM331BXF-MS is available in a green SOT23-5 package with an operating temperature range of -25℃ to +85℃.
Applications
- Hysteresis comparator
- Floor scrubbing robot
- Single-phase UPS
- Server power supply
- Cordless power tools
- Industrial automation & control
- Motor driver
- Instrumentation
Key features
- Wide supply voltage range: 3V ~ 32V
- Low input offset voltage: 2mV (typical)
- Low quiescent current: 75μA (at VS=5V)
- Low input bias current: 100nA
- Input common-mode voltage range includes ground
- Open-drain output
- Fast response time
- Package: SOT23-5
