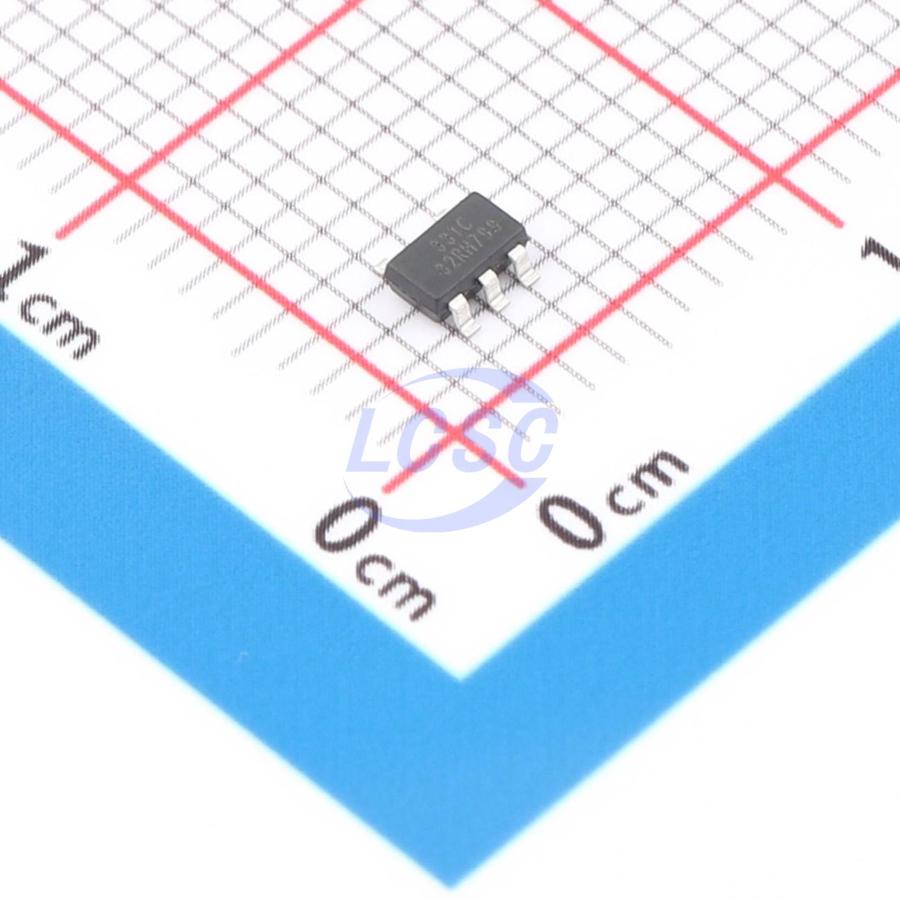

LM331CXF-MS
2mV 1nA 1 SOT-23-5 Linear Comparators
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LM331CXF-MS
- Store part #
- C30200456
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C30200456
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.33 | ₹71.65 |
| 50+ | ₹11.39 | ₹569.50 |
| 150+ | ₹9.91 | ₹1,486.50 |
| 500+ | ₹8.81 | ₹4,405.00 |
| 2,500+ | ₹7.92 | ₹19,800.00 |
| 5,000+ | ₹7.49 | ₹37,450.00 |
5 × ₹14.33
₹71.65
excl. GST
₹84.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM331CXF-MS
₹71.65 for 5 + GST
Specifications
- Dual Supply
- 1.5V~16V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 1nA
- Quiescent Current
- 75uA
- Output Mode
- TTL;CMOS
- Number of Channels
- 1
- Propagation Delay Time
- 485ns
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
LM331CXF-MS is a voltage comparator for ICs. It offers lower offset voltage, higher supply voltage capability, lower supply current, lower propagation delay, wider operating temperature range, and higher ESD performance. The device supports both single-supply and dual-supply operation. For dual-supply operation, the supply voltage range is ±1.5V to ±16V, with VS at least 1.5V above the input common-mode voltage. The output is compatible with TTL and CMOS logic, and leakage current is independent of supply voltage. Outputs can be connected to other open-drain outputs to implement a wired-AND function. The LM331CXF-MS comes in a green SOT23-5 package with an operating temperature range of -25°C to +85°C.
Applications
- Hysteresis comparator
- Uninterruptible power supply
- Server power supply
- Industrial automation and control
- Motor driver
Key features
- Wide supply voltage range: 3V to 32V
- Low input offset voltage: 2mV (typical)
- Low quiescent current: 75μA (at VS=5V)
- Low input bias current: 100nA
- Input common-mode voltage range includes ground
- Open-drain output
- Fast response time
- Package: SOT23-5
