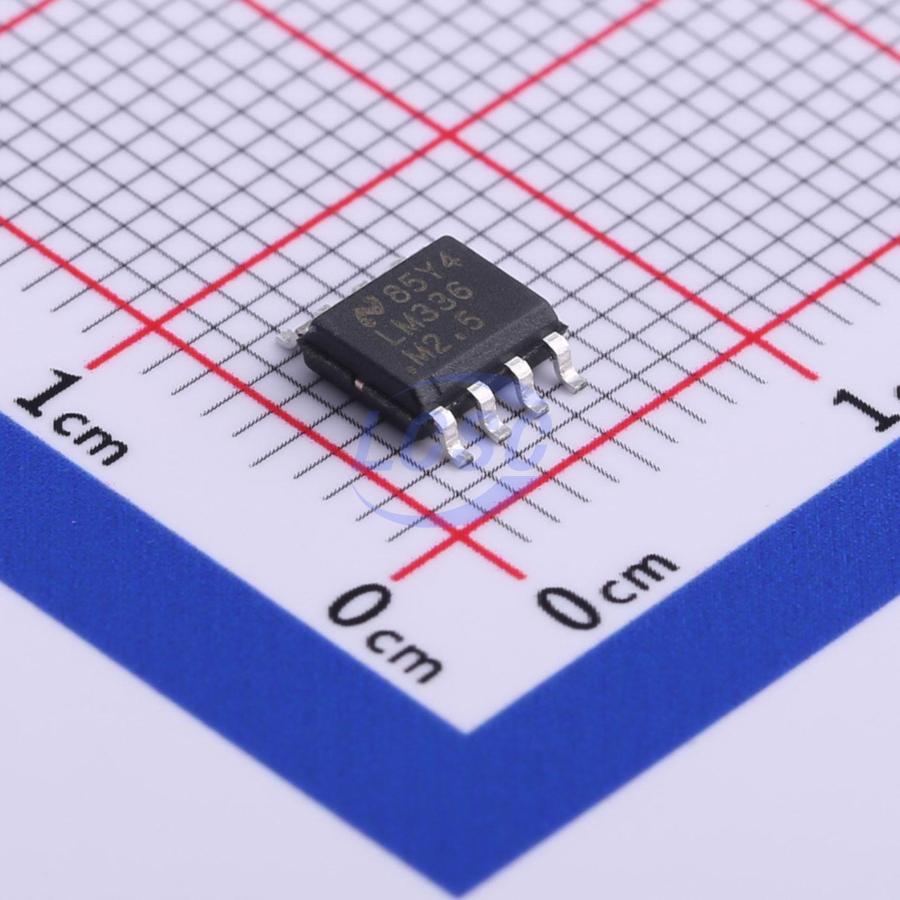

LM336MX-2.5/NOPB

2.49V ±1% 10mA Fixed SOIC-8 Voltage Reference RoHS

SOIC-8ROHS3 CompliantActive

2.5V Reference Diode

Manufacturer: TI
Manufacturer part #: LM336MX-2.5/NOPB
Store part #: C529309
Package / case: SOIC-8
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,900 in stock

#C529309

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
1+	₹96.14	₹96.14
10+	₹76.79	₹767.90
30+	₹68.31	₹2,049.30
100+	₹57.85	₹5,785.00
500+	₹49.60	₹24,800.00
1,000+	₹46.98	₹46,980.00

Quantity (min 1)

1 × ₹96.14

₹96.14

excl. GST

₹113.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM336MX-2.5/NOPB

₹96.14 for 1 + GST

Specifications

Output Voltage: 2.49V
Tolerance: ±1%
Minimum Cathode Current for Regulation: 400uA
Reference Type: Parallel
Output Current: 10mA
Operating Temperature: 0℃~+70℃
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.108 g

Overview

The LM136-2.5/LM236-2.5 and LM336-2.5 integrated circuits are precision 2.5V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature-coefficient 2.5V zener with 0.2Ω dynamic impedance. A third terminal on the LM136-2.5 allows the reference voltage and temperature coefficient to be trimmed easily. The LM136-2.5 series is useful as a precision 2.5V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 2.5V make it convenient to obtain a stable reference from 5V logic supplies. Further, since the LM136- 2.5 operates as a shunt regulator, it can be used as either a positive or negative voltage reference. The LM136-2.5 is rated for operation over -55°C to +125°C while the LM236-2.5 is rated over a -25°C to +85°C temperature range. The LM336-2.5 is rated for operation over a 0°C to +70°C temperature range.

Key features

Low temperature coefficient
Wide operating current of 400 μA to 10 mA
0.2Ω dynamic impedance
±1% initial tolerance available
Guaranteed temperature stability
Easily trimmed for minimum temperature drift
Fast turn-on

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LM336M-2.5/TR#C507207HGSEMI · SOIC-8	HGSEMI	SOIC-8	9,980	₹23.02 · 9,980 in stock	View
LM336D-2.5RG#C5145288HANSCHIP semiconductor · SOP-8	HANSCHIP semiconductor	SOP-8	3,185	₹14.96 · 3,185 in stock	View
XL336-2.5#C521163XINLUDA · SOP-8	XINLUDA	SOP-8	2,450	₹18.44 · 2,450 in stock	View
LM336M-2.5/NOPB#C1575279TI · SOIC-8	TI	SOIC-8	On request	₹187.24 · 0 in stock	View
