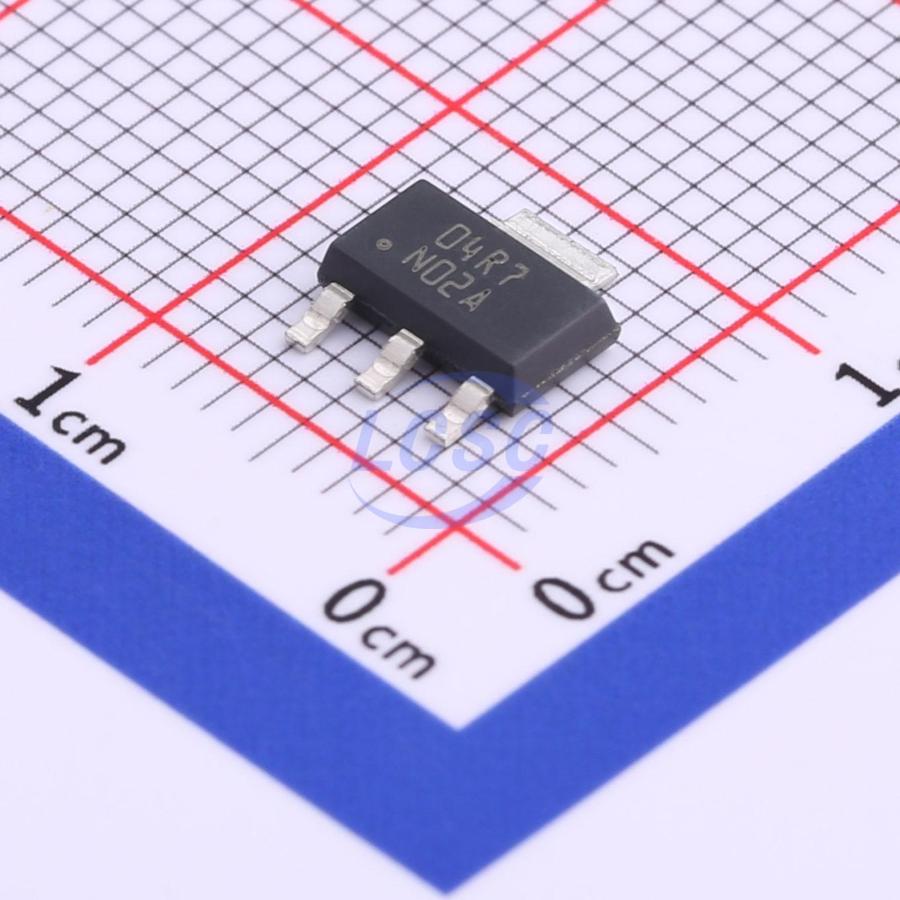

LM337IMP/NOPB
1.25V~37V Negative Adjustable SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
1.5A Negative Voltage Adjustable Linear Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM337IMP/NOPB
- Store part #
- C527400
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,287 in stock
#C527400
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.88 | ₹139.88 |
| 10+ | ₹114.25 | ₹1,142.50 |
| 30+ | ₹100.35 | ₹3,010.50 |
| 100+ | ₹87.53 | ₹8,753.00 |
| 500+ | ₹80.58 | ₹40,290.00 |
| 1,000+ | ₹77.33 | ₹77,330.00 |
1 × ₹139.88
₹139.88
excl. GST
₹165.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM337IMP/NOPB
₹139.88 for 1 + GST
Specifications
- Output Voltage
- 1.25V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Negative
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The LM137 and LM337-N are adjustable 3-terminal negative voltage regulators capable of supplying -1.5 A or more currents over an output voltage range of -1.25 V to -37 V. It requires only two external resistors to set the output voltage and one output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137 and LM337-N feature internal current limiting, thermal shutdown and safe-area compensation, making it virtually blowout-proof against overloads. The LM137 and LM337-N are ideal complements to the LM117 and LM317 adjustable positive regulators. The LM137 has a wider operating temperature range than the LM337-N.
Applications
- Industrial Power Supplies
- Factory Automation Systems
- Building Automation Systems
- PLC Systems
- Instrumentation
- IGBT Drive Negative Gate Supplies
- Networking Set-Top Boxes
Key features
- 1.5-A Output Current
- Line Regulation 0.01%/V (Typical)
- Load Regulation 0.3% (Typical)
- 77-dB Ripple Rejection
- 50 ppm/°C Temperature Coefficient
- Thermal Overload Protection
- Internal Short-Circuit Current Limiting Protections
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM337IMPX/NOPB#C74510TI · SOT-223-4 | TI | SOT-223-4 | 9,338 | ₹135.17 · 9,338 in stock | View |
 | LM337S(XBLW)#C19267471XBLW · SOT-223 | XBLW | SOT-223 | 1,903 | ₹57.67 · 1,903 in stock | View |
