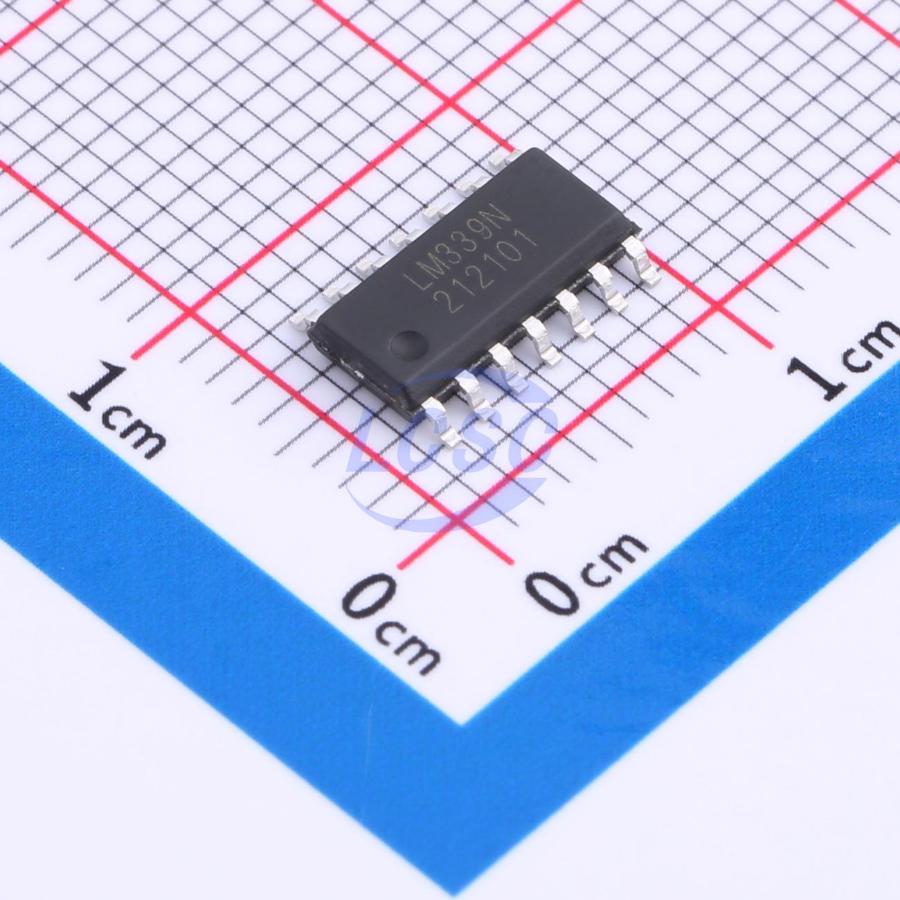

LM339
2mV 25nA Four channels SOP-14 Linear Comparators RoHS
Low Power Offset Voltage Quad Comparators
- Manufacturer
- JSCJ
- Manufacturer part #
- LM339
- Store part #
- C2829428
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,370 in stock
#C2829428
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.24 | ₹101.20 |
| 50+ | ₹16.22 | ₹811.00 |
| 150+ | ₹14.21 | ₹2,131.50 |
| 500+ | ₹12.71 | ₹6,355.00 |
| 2,500+ | ₹11.51 | ₹28,775.00 |
| 5,000+ | ₹10.90 | ₹54,500.00 |
5 × ₹20.24
₹101.20
excl. GST
₹119.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339
₹101.20 for 5 + GST
Specifications
- Dual Supply
- 1V~18V
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 800uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;CMOS
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.313 g
Overview
The LM339 series consists of four independent precision voltage comparators with an offset voltage specification as low as 2mV. The input common mode voltage range of these comparators includes ground, even when operated from a single power supply voltage. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The LM339 series is designed to directly interface with TTL and CMOS.
Applications
- Battery Charger
- Cordless Telephone
- Switching Power Supply
- DC-DC Module
- PC Motherboard
Key features
- Wide Supply Voltage Range
- Single Supply: 2.0V to 36V
- Dual Supplies: ±1.0V to ±18V
- Very Low Supply Current Drain: 0.8mA
- Independent of Supply Voltage
- Low Input Bias Current: 25nA (Typical)
- Low Input Offset Current: ±5nA (Typical)
- Low Input Offset Voltage: ±2mV (Typical)
- Input Common Mode Voltage Range Includes Ground
- Differential Input Voltage Range Equals to the Power Supply Voltage
- Low Output Saturation Voltage: 250mV at 4mA
- Open Collector Output
