JSMSEMIDatasheet (PDF)

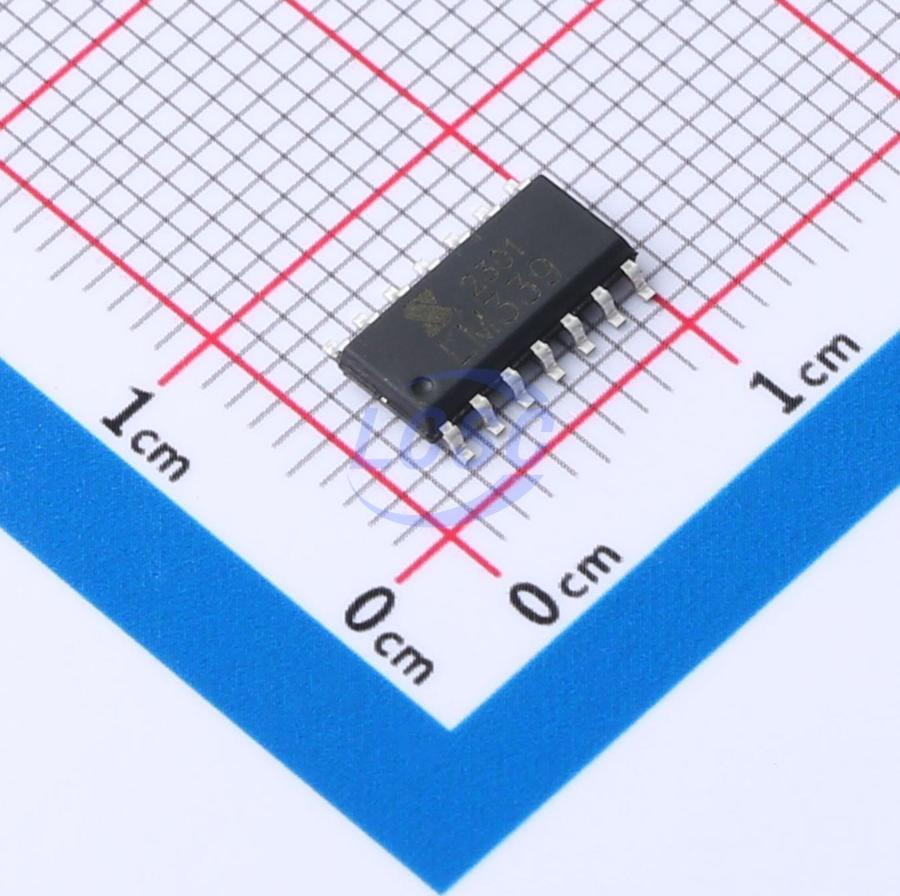

LM339
1.5mV 57nA Four channels SOP-14 Linear Comparators RoHS
SOP-14ROHS CompliantActive
Quad Differential Comparator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM339
- Store part #
- C5456631
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27,660 in stock
#C5456631
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.71 | ₹63.55 |
| 50+ | ₹10.02 | ₹501.00 |
| 150+ | ₹8.65 | ₹1,297.50 |
| 500+ | ₹7.65 | ₹3,825.00 |
| 2,500+ | ₹6.58 | ₹16,450.00 |
| 5,000+ | ₹6.17 | ₹30,850.00 |
5 × ₹12.71
₹63.55
excl. GST
₹74.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339
₹63.55 for 5 + GST
Specifications
- Output Type
- Open Collector
- Vos - Input Offset Voltage
- 1.5mV
- Quiescent Current
- 1.1mA
- Ib - Input Bias Current
- 57nA
- Output Mode
- TTL;DTL;CMOS
- Number of Channels
- Four channels
- Propagation Delay Time
- 150ns
- Input Offset Current(Ios)
- 2.3nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
The LM339 consists of four independent voltage comparators, designed specifically to operate from a single power supply over a wide voltage range.
Key features
- Signal or dual supply operation.
- Wide operating supply range Vcc = 2V ~ 32V.
- Input common - mode voltage includes ground.
- Low supply current drain VCG = 0.8mA (Typical).
- Open collector outputs for wired and connection.
- Low input bias current Ibias = 25nA (Typical).
- Low output saturation voltage.
- Output compatible with TTL, DTL, and CMOS logic system.
