KTPDatasheet (PDF)

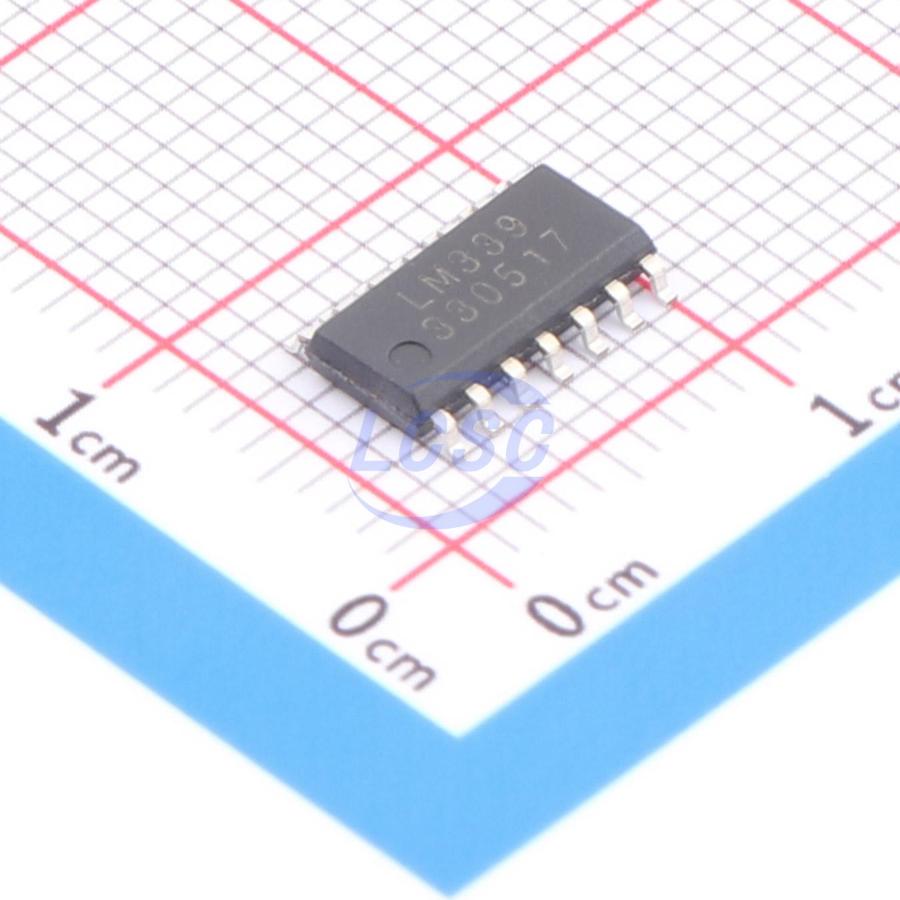

LM339(KTP)
1.5mV 57nA 4 SOP-14 Linear Comparators
SOP-14RoHSActive
- Manufacturer
- KTP
- Manufacturer part #
- LM339(KTP)
- Store part #
- C52746279
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,710 in stock
#C52746279
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.92 | ₹79.20 |
| 100+ | ₹6.24 | ₹624.00 |
| 300+ | ₹5.40 | ₹1,620.00 |
| 1,000+ | ₹4.78 | ₹4,780.00 |
| 4,000+ | ₹4.26 | ₹17,040.00 |
| 8,000+ | ₹4.01 | ₹32,080.00 |
10 × ₹7.92
₹79.20
excl. GST
₹93.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM339(KTP)
₹79.20 for 10 + GST
Specifications
- Output Type
- Open Collector
- Vos - Input Offset Voltage
- 1.5mV
- Quiescent Current
- 1.1mA
- Ib - Input Bias Current
- 57nA
- Output Mode
- TTL;DTL;CMOS
- Number of Channels
- 4
- Input Offset Current(Ios)
- 2.3nA
- Operating Temperature
- 0℃~+70℃
- Response Time (tr)
- 350ns
- Single Supply
- 2V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.265 g
Overview
LM339 contains four independent voltage comparators, designed to operate from a single supply over a wide voltage range.
Key features
- Single or dual supply operation.
- Wide supply voltage range (Vcc = 2V~30V).
- Input common-mode voltage range includes ground.
- Low supply current, ICC = 0.8mA (typical).
- Open-collector output for wired-AND connections.
- Low input bias current, Ibias = 25nA (typical).
- Low output saturation voltage.
- Output compatible with TTL, DTL, and CMOS logic systems.
