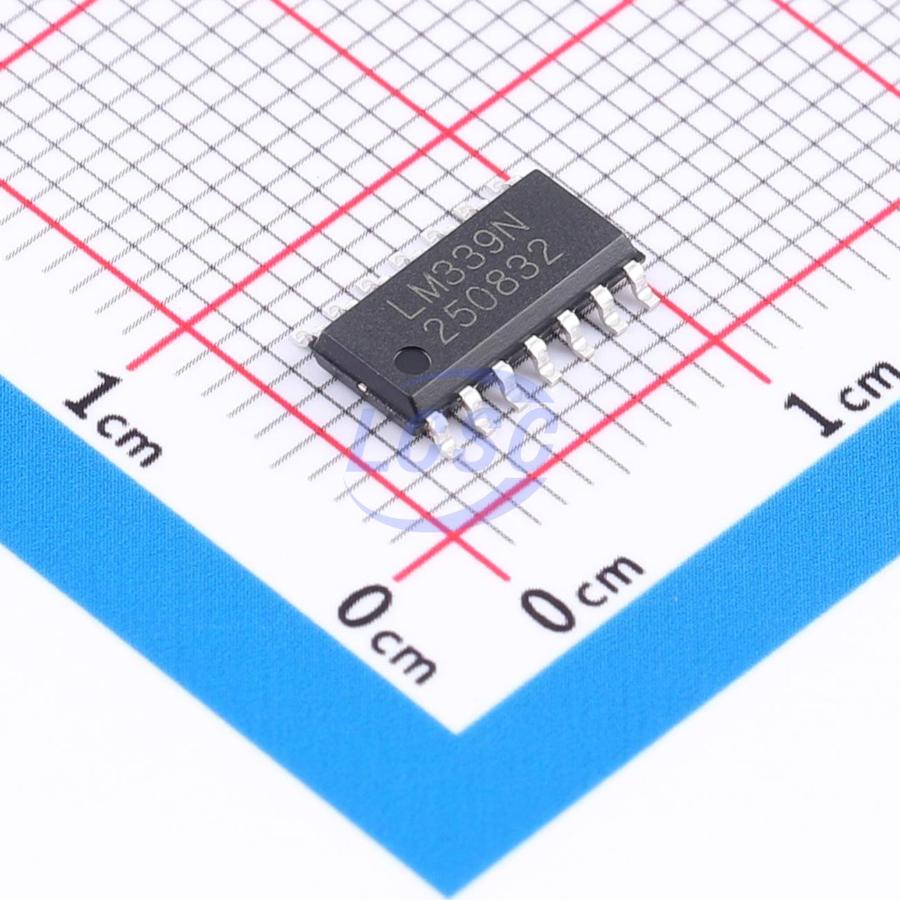

LM339-P14
1mV 25nA 4 SOP-14 Linear Comparators
- Manufacturer
- Shikues
- Manufacturer part #
- LM339-P14
- Store part #
- C53467547
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,475 in stock
#C53467547
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.57 | ₹72.85 |
| 50+ | ₹11.58 | ₹579.00 |
| 150+ | ₹10.08 | ₹1,512.00 |
| 500+ | ₹8.96 | ₹4,480.00 |
| 2,500+ | ₹8.06 | ₹20,150.00 |
| 5,000+ | ₹7.61 | ₹38,050.00 |
5 × ₹14.57
₹72.85
excl. GST
₹85.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339-P14
₹72.85 for 5 + GST
Specifications
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Output Type
- Open Collector
- Vos - Input Offset Voltage
- 1mV
- Quiescent Current
- 400uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;CMOS
- Number of Channels
- 4
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -20℃~+85℃
- Response Time (tr)
- 1.3us
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.263 g
Overview
The LM339 is a quad voltage comparator circuit consisting of four independent input stage voltage comparators. With an offset voltage specification as low as 3mV, it is primarily used in consumer electronics. The LM339 can operate from either a single or dual power supply, with operating current independent of supply voltage. It also features a unique characteristic where the input common-mode voltage range extends down to ground level when powered from a single supply. The LM339 is available in SOP-14 and DIP-14 package types.
Applications
- Power supply monitoring
- Peak detector
- Logic level translation
Key features
- Wide supply voltage range:
- Single supply: 3V~36V
- Dual supply: ±1.5V~±18V
- Low input bias current: 25nA (typ.)
- Low input offset current: ±5nA (typ.)
- Output compatible with TTL, MOS, and CMOS
