TDSEMICDatasheet (PDF)

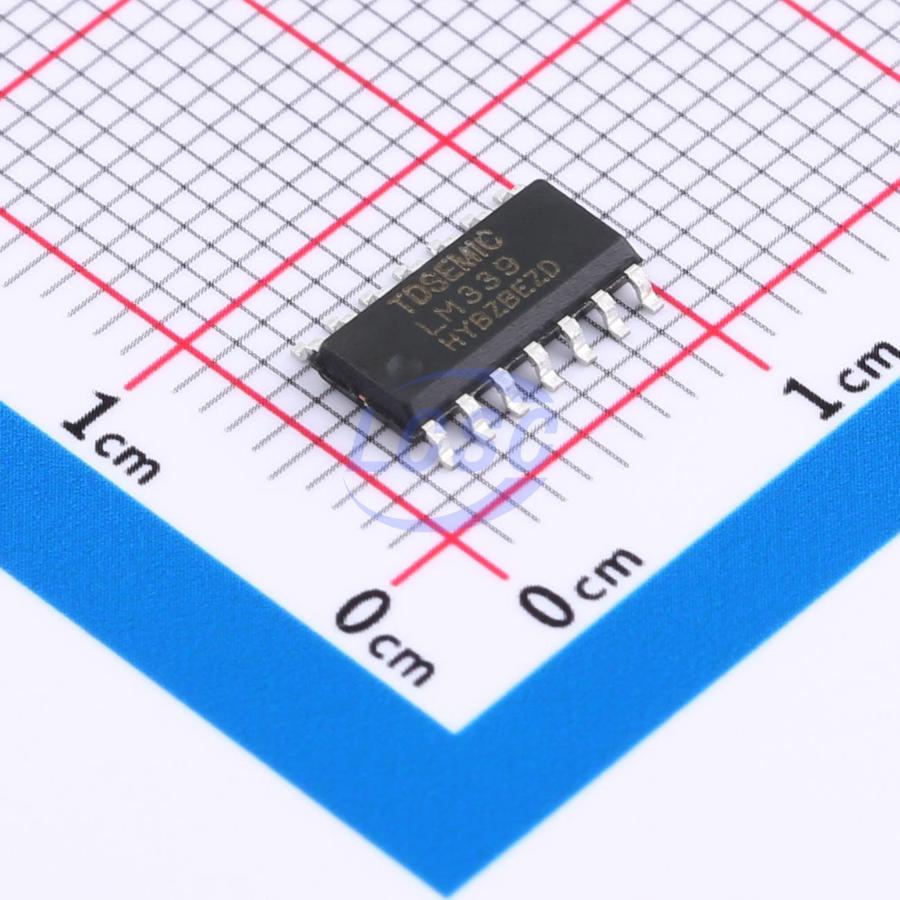

LM339-TD
2mV 25nA Four channels SOP-14 Linear Comparators RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- LM339-TD
- Store part #
- C42421976
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,415 in stock
#C42421976
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.06 | ₹55.30 |
| 50+ | ₹8.77 | ₹438.50 |
| 150+ | ₹7.62 | ₹1,143.00 |
| 500+ | ₹6.76 | ₹3,380.00 |
| 2,500+ | ₹6.07 | ₹15,175.00 |
| 5,000+ | ₹5.73 | ₹28,650.00 |
5 × ₹11.06
₹55.30
excl. GST
₹65.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339-TD
₹55.30 for 5 + GST
Specifications
- Dual Supply
- ±18V
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 800uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;CMOS
- Number of Channels
- Four channels
- Propagation Delay Time
- 300ns
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.277 g
Overview
LM339 is a quad comparator IC, primarily used in consumer and industrial electronics for level detection and low-level sensing. Available in DIP-14, SOP-14, TSSOP-14, QSOP-16, and QFN-16 packages.
Key features
- Single or dual supply operation
- Low input bias current: 25nA (typical)
- Low input offset current: ±5.0nA (typical)
- Low output saturation voltage: 130mV
- Compatible with TTL and CMOS
