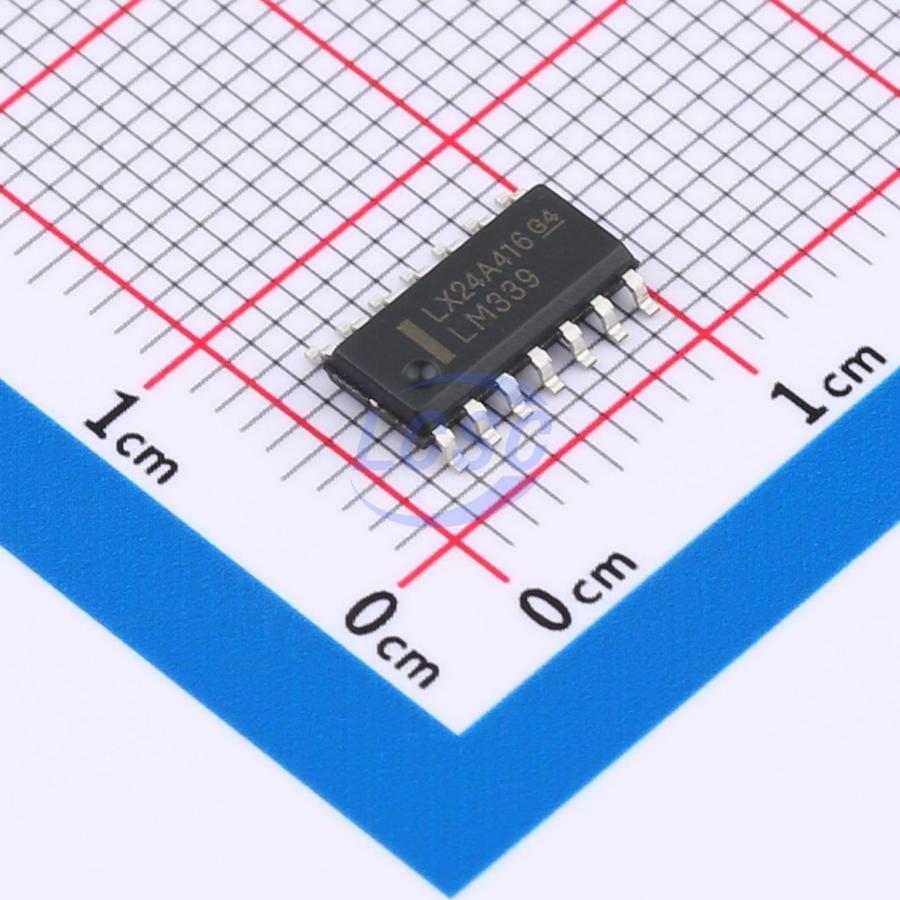

LM339DR(LX)
2mV 25nA Four channels SOP-14 Linear Comparators
LM239/LM339 (LX) Quad Differential Comparators
- Manufacturer
- lingxingic
- Manufacturer part #
- LM339DR(LX)
- Store part #
- C24833650
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C24833650
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.04 | ₹50.20 |
| 50+ | ₹7.94 | ₹397.00 |
| 150+ | ₹6.89 | ₹1,033.50 |
| 500+ | ₹6.10 | ₹3,050.00 |
| 2,500+ | ₹5.46 | ₹13,650.00 |
| 4,000+ | ₹5.16 | ₹20,640.00 |
5 × ₹10.04
₹50.20
excl. GST
₹59.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM339DR(LX)
₹50.20 for 5 + GST
Specifications
- Output Type
- Open-drain
- Quiescent Current
- 800uA
- Output Mode
- TTL;CMOS
- Propagation Delay Time
- 1.3us
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us;0.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.231 g
Overview
LM239/LM339 consists of four independent comparators internally. The circuit can operate from a wide voltage range single supply, and also supports dual supply operation. In dual supply mode, the voltage difference between the two supplies ranges from 2V to 18V, with VCC at least 1.5V above the input common-mode voltage. Quiescent current consumption is independent of supply voltage. The outputs can be connected to the open-collector outputs of other devices to achieve a wired-AND configuration. The LM239/LM339 single-supply operating voltage range is 2V to 36V.
Applications
- Industrial
- Automotive
- Power supervision
- Oscillator peak detector
- Logic level translation
Key features
- Wide supply voltage range: single supply 2V~36V, dual supply ±1V~±18V
- Low supply current independent of supply voltage: 0.8mA (typical)
- Low input bias current: 25nA (typical)
- Low input offset voltage: 2mV (typical)
- Common-mode input voltage range includes ground
- Differential input voltage range equals maximum rated supply voltage: ±36V
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS
- Package: SOP14/DIP14/TSSOP14
