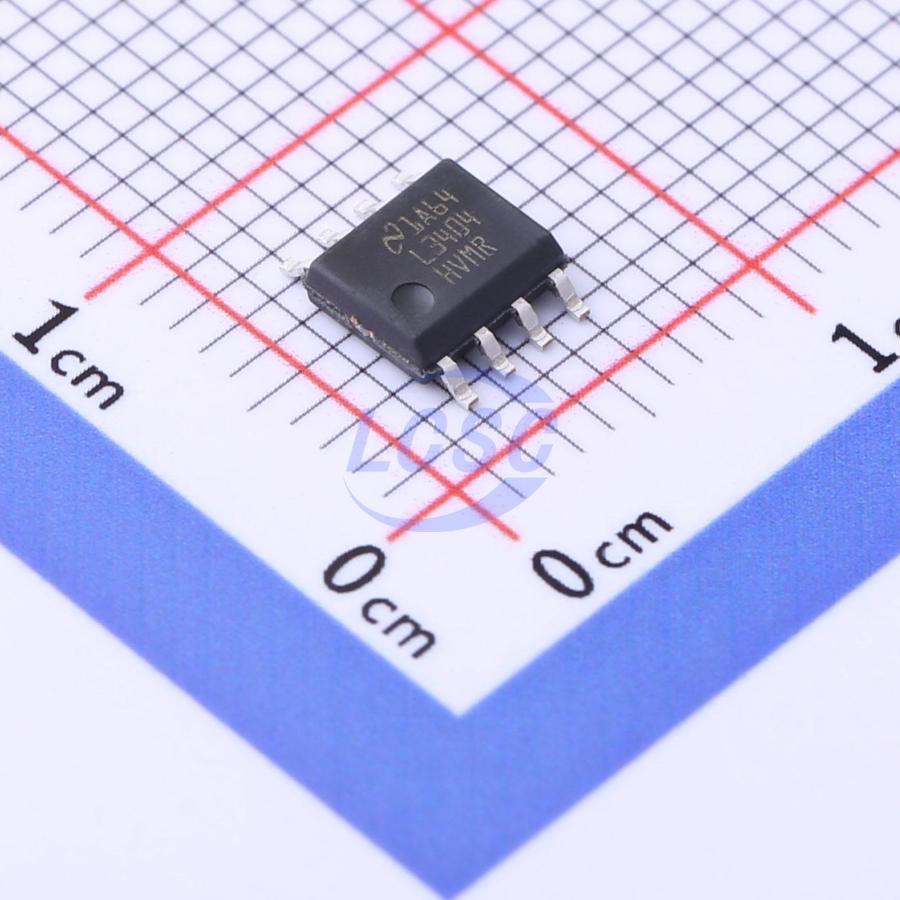

LM3404HVMRX/NOPB
1MHz PWM 1 DC-DC 1.2A 9V~75V SO-8-EP LED Drivers RoHS
1-A Constant Current Buck Regulator for Driving High Power LEDs
- Manufacturer
- TI
- Manufacturer part #
- LM3404HVMRX/NOPB
- Store part #
- C2653378
- Package / case
- SO-8-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,935 in stock
#C2653378
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹274.81 | ₹274.81 |
| 10+ | ₹228.51 | ₹2,285.10 |
| 30+ | ₹202.86 | ₹6,085.80 |
| 100+ | ₹174.15 | ₹17,415.00 |
| 500+ | ₹161.33 | ₹80,665.00 |
| 1,000+ | ₹155.45 | ₹1,55,450.00 |
1 × ₹274.81
₹274.81
excl. GST
₹324.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM3404HVMRX/NOPB
₹274.81 for 1 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Operating Temperature
- -40℃~+125℃
- Features
- Over Voltage Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- Buck
- Voltage - Input(DC)
- 9V~75V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.179 g
Overview
The LM3404 and LM3404HV devices are monolithic switching regulators designed to deliver constant currents to high power LEDs. Ideal for automotive, industrial, and general lighting applications, these devices contain a high - side N - channel MOSFET switch with a current limit of 1.5 - A (typical) for step - down (Buck) regulators. Hysteretic controlled on - time and an external resistor allow the converter output voltage to adjust as needed to deliver a constant current to series and series - parallel connected LED arrays of varying number and type. Some features are: LED dimming using pulse width modulation (PWM), broken or open LED protection, low - power shutdown, and thermal shutdown.
Applications
- LED Drivers
- Constant Current Sources
- Automotive Lighting
- General Illumination
- Industrial Lighting
Key features
- Integrated 1 - A MOSFET
- V_IN Range 6 V to 42 V (LM3404)
- V_IN Range 6 V to 75 V (LM3404HV)
- 1.2 - A Output Current Overtemperature
- Cycle - by - Cycle Current Limit
- No Control Loop Compensation Required
- Separate PWM Dimming and Low Power Shutdown
- Supports All - Ceramic Output Capacitors and Capacitor - less Outputs
- Thermal Shutdown Protection
- SOIC - 8 Package, SO PowerPAD - 8 Package
