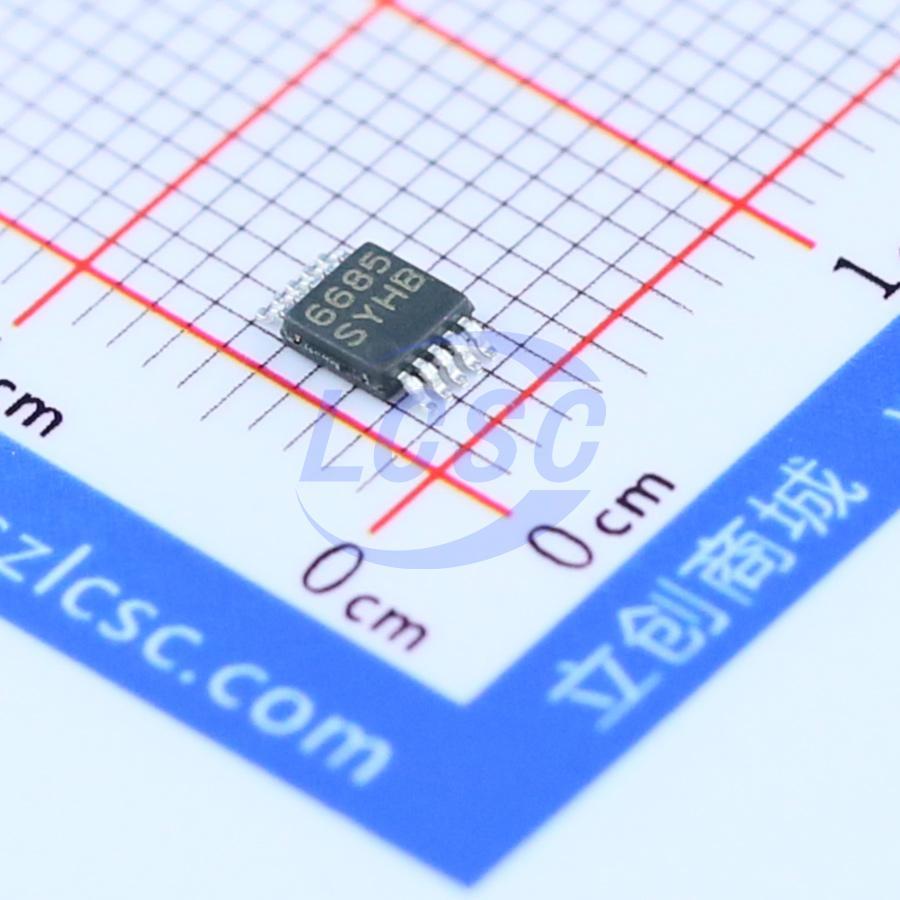

LM3409HVMY/NOPB
5A 1 DC-DC 6V~75V MSOP-10-EP LED Drivers RoHS
PFET Buck Controller for High-Power LED Drivers
- Manufacturer
- TI
- Manufacturer part #
- LM3409HVMY/NOPB
- Store part #
- C11157
- Package / case
- MSOP-10-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,099 in stock
#C11157
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹307.15 | ₹307.15 |
| 10+ | ₹271.68 | ₹2,716.80 |
| 30+ | ₹252.12 | ₹7,563.60 |
| 100+ | ₹229.99 | ₹22,999.00 |
| 500+ | ₹208.70 | ₹1,04,350.00 |
| 1,000+ | ₹204.19 | ₹2,04,190.00 |
1 × ₹307.15
₹307.15
excl. GST
₹362.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM3409HVMY/NOPB
₹307.15 for 1 + GST
Specifications
- Output Current
- 5A
- Operating Temperature
- -40℃~+125℃
- Dimming
- PWM;Analog
- Number of Channels
- 1
- Type
- DC-DC
- Features
- Over-Temperature Protection (OTP)
- Switch tube (built-in/external)
- External
- Topology
- Buck
- Voltage - Input(DC)
- 6V~75V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.142 g
Overview
The LM3409/09N/09HV/09Q/09QHV are P-channel MOSFET (PFET) controllers for step-down (buck) current regulators. They offer wide input voltage range, high-side differential current sense with low adjustable threshold voltage and fast output enable/disable function and a thermally enhanced VSSOP-10 package. These features combine to make the LM3409 family of devices ideal for use as constant current sources for driving LEDs where forward currents up to 5 A are easily achievable. The LM3409 devices use Constant Off-Time (COFT) control to regulate an accurate constant current without the need for external control loop compensation. Analog and PWM dimming are easy to implement and result in a highly linear dimming range with excellent achievable contrast ratios. Programmable UVLO, low-power shutdown, and thermal shutdown complete the feature set.
Applications
- LED Driver
- Constant Current Source
- Automotive Lighting
- General Illumination
Key features
- LM3409Q/LM3409QHV is an Automotive Grade Product That is AEC-Q100 Grade 1 Qualified
- 2-Ω, 1-A Peak MOSFET Gate Drive
- VIN Range: 6 V to 42 V (LM3409/LM3409Q/LM3409N)
- VIN Range: 6 V to 75 V (LM3409HV/LM3409QHV)
- Differential, High-Side Current Sense
- Cycle-by-Cycle Current Limit
- No Control Loop Compensation Required
- 10,000:1 PWM Dimming Range
- 250:1 Analog Dimming Range
- Supports All-Ceramic Output Capacitors and Capacitor-less Outputs
- Low-Power Shutdown and Thermal Shutdown
- Thermally Enhanced VSSOP-10 Package
- Dual Inline Package (LM3409N)
