TIDatasheet (PDF)

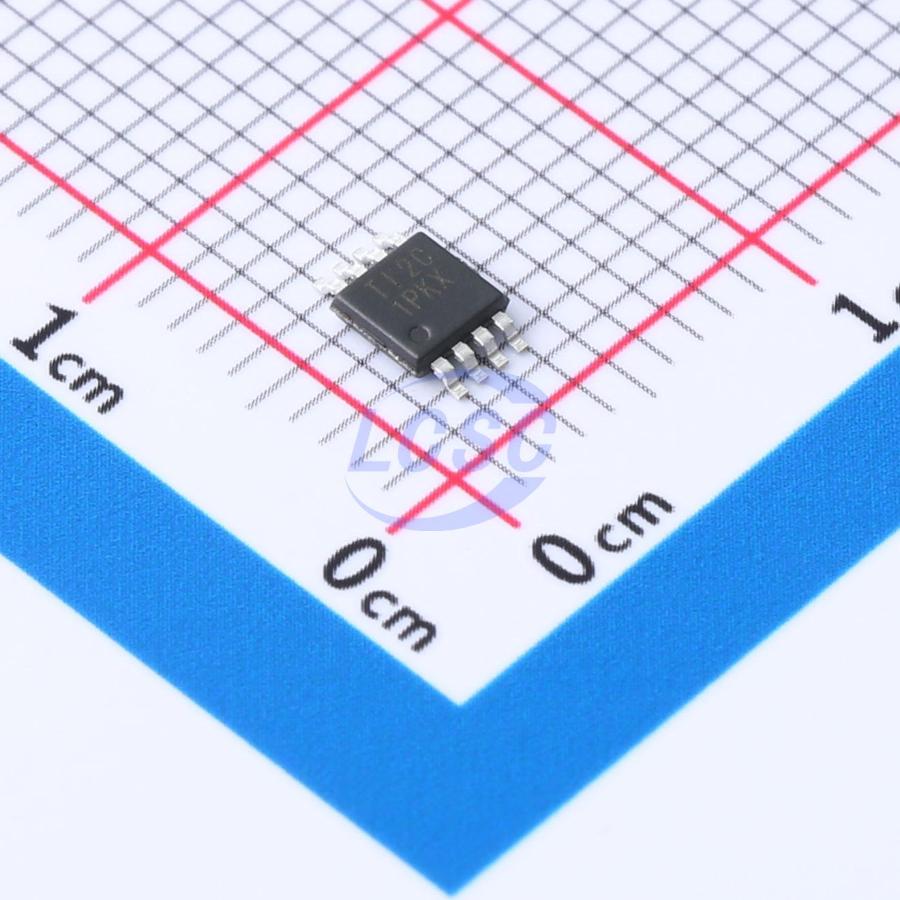

LM358LVIDGKR
40mA 2 5mV 1.5V/us 80dB 15pA 90uA 1MHz VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS3 CompliantActive
Industry-standard low-voltage operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- LM358LVIDGKR
- Store part #
- C543054
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,815 in stock
#C543054
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.41 | ₹72.05 |
| 50+ | ₹11.64 | ₹582.00 |
| 150+ | ₹10.23 | ₹1,534.50 |
| 500+ | ₹9.06 | ₹4,530.00 |
| 2,500+ | ₹8.65 | ₹21,625.00 |
| 5,000+ | ₹8.37 | ₹41,850.00 |
5 × ₹14.41
₹72.05
excl. GST
₹85.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM358LVIDGKR
₹72.05 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 1.5V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 15pA
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 90uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.341 g
Overview
Industry-standard amplifiers suitable for cost-sensitive systems. The LM3xxLV series includes single-channel LM321LV, dual-channel LM358LV, and quad-channel LM324LV operational amplifiers. These devices are powered by a low voltage of 2.7V to 5.5V. In cost-sensitive low-voltage applications, these operational amplifiers can be used as replacements for LM321, LM358, and LM324. The LM3xxLV devices offer better performance than the LM3xx devices at low voltages and consume less power. These operational amplifiers have unity-gain stability and do not exhibit phase reversal under overdrive conditions. The ESD design provides the LM3xxLV series with an HBM specification of at least 2kV.
Applications
- Radio equipment uninterruptible power supplies
- Battery packs, chargers, and test equipment
- Power modules
- Environmental sensor signal conditioning
- Field transmitters: temperature sensors
- Oscilloscopes, digital multimeters, test equipment
- Rack servers
- HVAC: DC motor control low-side current sensing
Key features
- Low input offset voltage: ±1mV
- Common-mode voltage range includes ground
- Unity-gain bandwidth: 1MHz
- Low wideband noise: 40nV/√Hz
- Low quiescent current: 90μA/channel
- Unity-gain stable
- Operates from 2.7V to 5.5V supply voltage range
- Available in single, dual, and quad versions
- Robust ESD rating: 2kV HBM
- Operating temperature range: –40°C to 125°C
