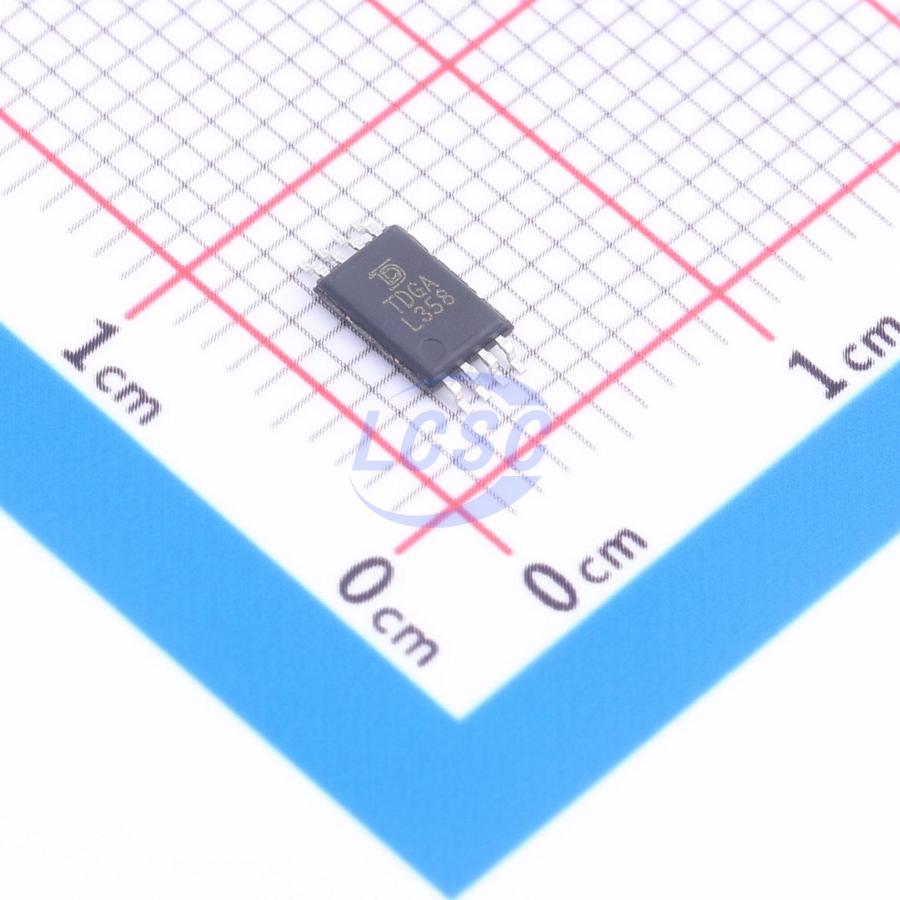

LM358PWR-TUDI
250nA 600uA 700kHz TSSOP-8 Audio Amplifiers
- Manufacturer
- Tudi
- Manufacturer part #
- LM358PWR-TUDI
- Store part #
- C55098833
- Package / case
- TSSOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C55098833
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.18 | ₹70.90 |
| 50+ | ₹11.26 | ₹563.00 |
| 150+ | ₹9.80 | ₹1,470.00 |
| 500+ | ₹8.72 | ₹4,360.00 |
| 2,500+ | ₹7.85 | ₹19,625.00 |
| 5,000+ | ₹7.40 | ₹37,000.00 |
5 × ₹14.18
₹70.90
excl. GST
₹83.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM358PWR-TUDI
₹70.90 for 5 + GST
Specifications
- Ib - Input Bias Current
- 250nA
- number of channels
- 2
- Operating Temperature
- 0℃~+70℃
- Input Offset Current(Ios)
- 50nA
- Vos - Input Offset Voltage
- 3mV
- Output Current
- 30mA
- Quiescent Current
- 600uA
- Common Mode Rejection Ratio (CMRR)
- 80dB
- Gain Bandwidth Product
- 700kHz
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Single Supply
- 3V~30V
- Dual Supply
- 1.5V~16V;-16V~-1.5V
- Slew Rate
- 300V/ms
- Noise density(eN)
- 40nV/√Hz@1kHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.246 g
