PJSEMI

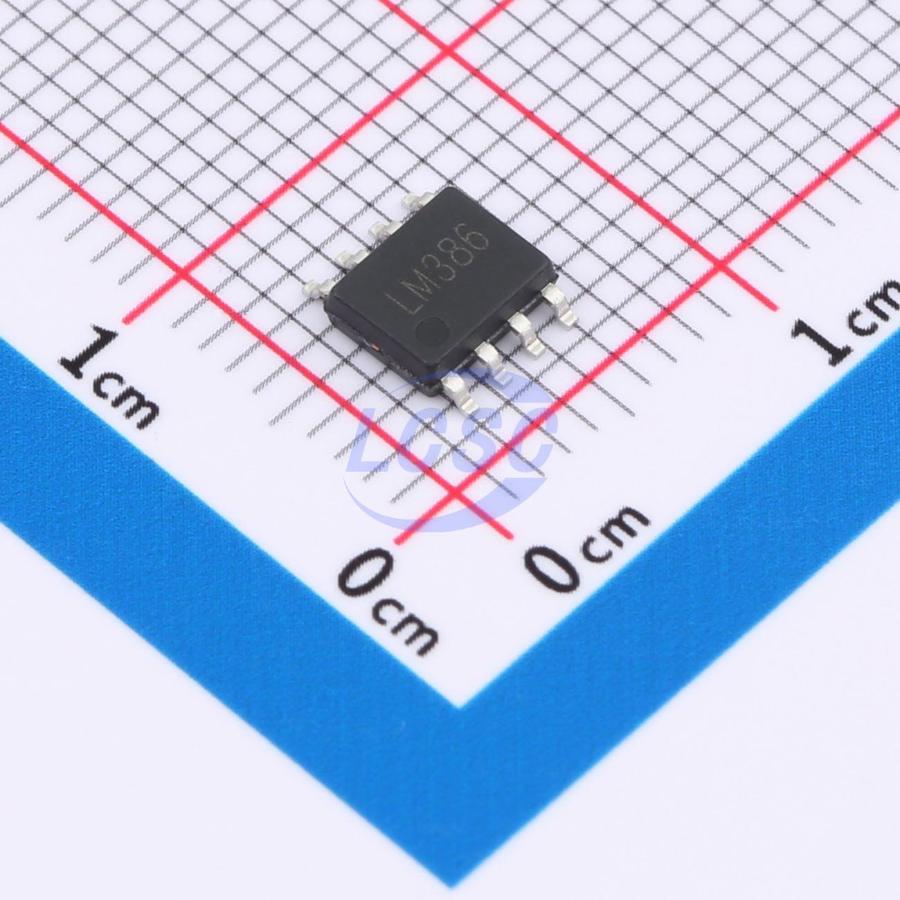

LM386

4V~12V 4mA 1-Channel 700mWx1@8Ω Class AB SOP-8 Audio Amplifiers

SOP-8RoHSActive

Low-voltage audio power amplifier

Manufacturer: PJSEMI
Manufacturer part #: LM386
Store part #: C22438596
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,095 in stock

#C22438596

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.18	₹65.90
50+	₹10.35	₹517.50
150+	₹8.93	₹1,339.50
500+	₹7.87	₹3,935.00
2,500+	₹7.03	₹17,575.00
4,000+	₹6.60	₹26,400.00

Quantity (min 5, multiples of 5)

5 × ₹13.18

₹65.90

excl. GST

₹77.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LM386

₹65.90 for 5 + GST

Specifications

Voltage - Supply: 4V~12V
Quiescent Current: 4mA
Total Harmonic Distortion + Noise (THD+N): 0.2%
Operating Temperature: 0℃~+70℃
Speaker Channels: 1-Channel
Output Power: 700mWx1@8Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 50dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.12 g

Overview

The LM386 audio power amplifier is designed primarily for use in low-voltage consumer applications. To keep external component count to a minimum, the voltage gain is internally set to 20, but by adding an external resistor and capacitor between pins 1 and 8, the gain can be adjusted to any value up to 200. The inputs are referenced to ground, and the output is automatically biased to one-half the supply voltage. At a 6V supply voltage, the quiescent power drain is only 24mW, making the LM386 ideally suited for battery-powered applications.
