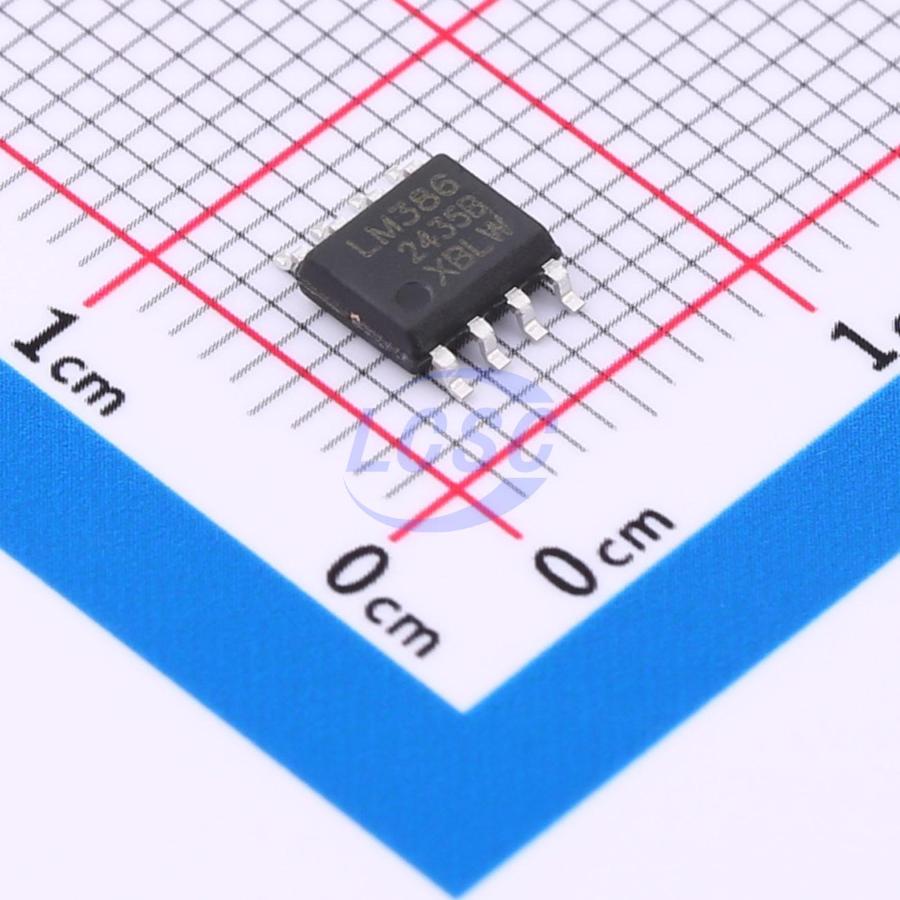

LM386DTR(XBLW)
4V~12V 4mA SOP-8 Audio Amplifiers RoHS
Low Voltage Audio Power Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- LM386DTR(XBLW)
- Store part #
- C42395500
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,870 in stock
#C42395500
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.86 | ₹98.60 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 2,500+ | ₹5.99 | ₹14,975.00 |
| 5,000+ | ₹5.37 | ₹26,850.00 |
| 10,000+ | ₹5.05 | ₹50,500.00 |
10 × ₹9.86
₹98.60
excl. GST
₹116.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM386DTR(XBLW)
₹98.60 for 10 + GST
Specifications
- Voltage - Supply
- 4V~12V
- Quiescent Current
- 4mA
- Features
- Analog voltage gain
- Total Harmonic Distortion + Noise (THD+N)
- 0.2%
- Operating Temperature
- 0℃~+70℃
- Power Supply Rejection Ratio (PSRR)
- 50dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.2 g
Overview
The LM386 audio power amplifier is mainly used in low voltage consumer products. To minimize peripheral components, the voltage gain is built-in to 20. But add an external resistor and capacitor between 1 and 8 pins to set the voltage gain to any value up to 200. The input is ground-referenced and the output is automatically offset to half the supply voltage. At 6V supply voltage, its static power consumption is only 24MW, making LM386 especially suitable for battery-powered occasions.
Applications
- Active Filter
- AM - FM Radio Amplifiers
- Portable Tape Player Amplifiers
- Intercoms
- TV Sound Systems
- Line Drivers
- Ultrasonic Drivers
- Small Servo Drivers
- Power Converters Industrial
Key features
- Battery Operation
- Minimum External Parts
- Wide Supply Voltage Range: 4 V - 12 V
- Low Quiescent Current Drain: 4 mA
- Voltage Gains from 20 to 200
- Ground-Referenced Input
- Self-Centering Output Quiescent Volta
- Low Distortion: 0.2% (AV = 20, VS = 6, RL = 8 Ω, PO = 125 mW, f = 1 kHz)
