GREENMICRO

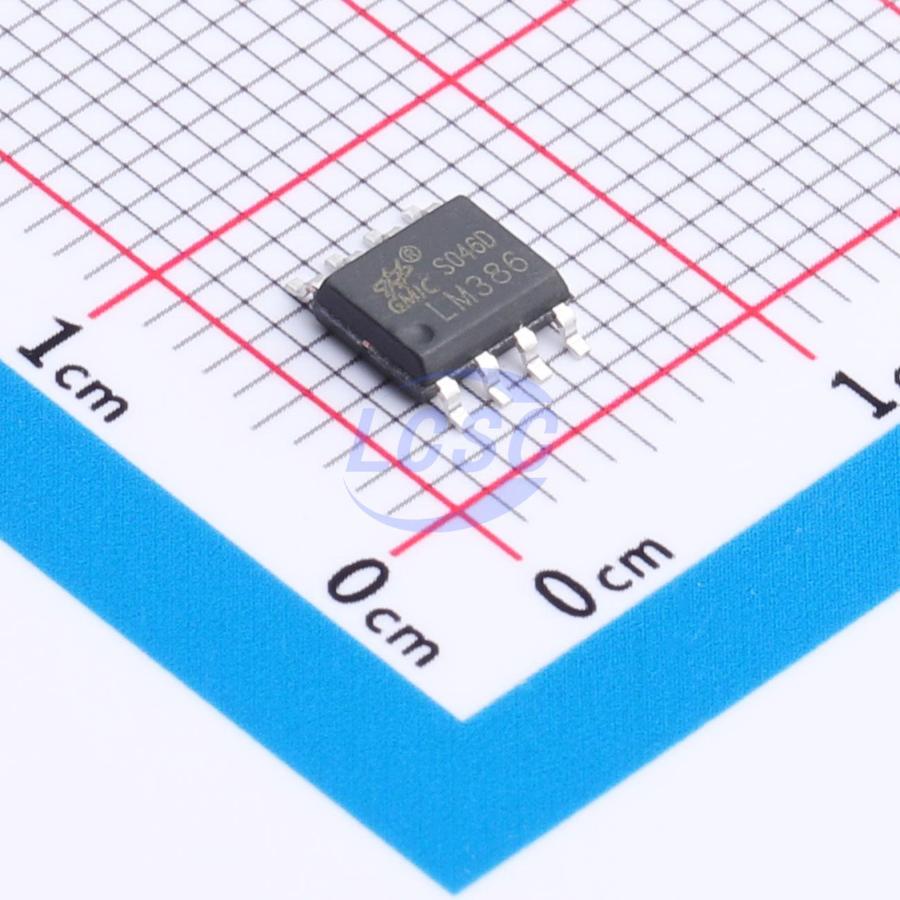

LM386M-1046

4V~12V 4mA 1-Channel 325x1mW@8Ω Class AB SOP-8 Audio Amplifiers

SOP-8RoHSActive

Manufacturer: GREENMICRO
Manufacturer part #: LM386M-1046
Store part #: C51026330
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,860 in stock

#C51026330

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹9.92	₹49.60
50+	₹7.89	₹394.50
150+	₹6.87	₹1,030.50
500+	₹6.10	₹3,050.00
2,500+	₹5.49	₹13,725.00
5,000+	₹5.19	₹25,950.00

Quantity (min 5, multiples of 5)

5 × ₹9.92

₹49.60

excl. GST

₹58.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM386M-1046

₹49.60 for 5 + GST

Specifications

Voltage - Supply: 4V~12V
Quiescent Current: 4mA
Total Harmonic Distortion + Noise (THD+N): 0.2%
Operating Temperature: -40℃~+85℃
Speaker Channels: 1-Channel
Output Power: 325x1mW@8Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 50dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.2 g

Overview

The LM386 audio power amplifier is designed primarily for use in low-voltage consumer electronics applications. To minimize external components, the voltage gain is internally set to 20 (26 dB). By adding an external resistor and capacitor between pins 1 and 8, the voltage gain can be adjusted to any value up to 200 (46 dB). The inputs are referenced to ground, and the output is automatically biased to one-half the supply voltage. With a 6 V supply, the quiescent power drain is only 24 mW, making it ideal for battery-powered applications. The device is available in an 8-pin DIP and an 8-pin SOP.
