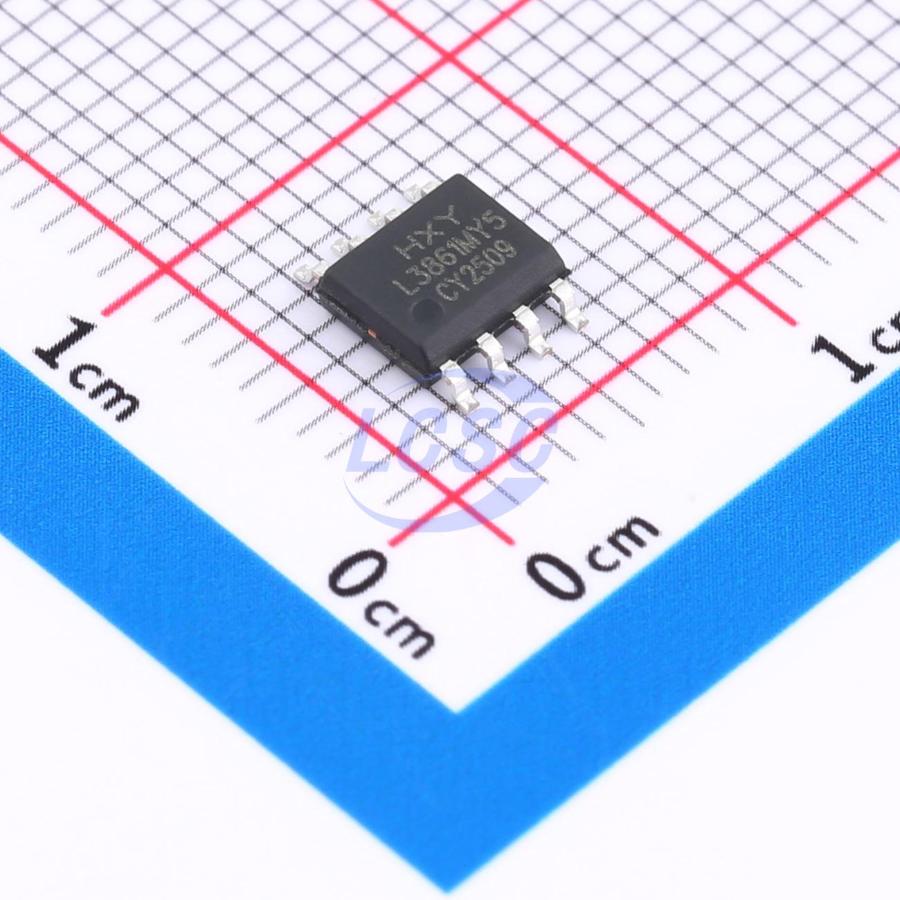

HXY MOSFET

LM386MX-1/NOPB-HXY

4V~12V 4mA SOP-8 Audio Amplifiers RoHS

SOP-8ROHS CompliantActive

Low Voltage Audio Power Amplifier

Manufacturer: HXY MOSFET
Manufacturer part #: LM386MX-1/NOPB-HXY
Store part #: C48677911
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,875 in stock

#C48677911

Stock & price checked 46 h ago

Quantity	Unit price	Pack price
5+	₹36.94	₹184.70
50+	₹29.01	₹1,450.50
150+	₹25.61	₹3,841.50
500+	₹21.37	₹10,685.00
2,500+	₹19.47	₹48,675.00
5,000+	₹18.35	₹91,750.00

Quantity (min 5, multiples of 5)

5 × ₹36.94

₹184.70

excl. GST

₹217.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM386MX-1/NOPB-HXY

₹184.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 4V~12V
Quiescent Current: 4mA
Total Harmonic Distortion + Noise (THD+N): 0.2%
Operating Temperature: 0℃~+70℃
Power Supply Rejection Ratio (PSRR): 50dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.12 g

Overview

The LM386MX-1/NOPB audio power amplifier is designed primarily for use in low-voltage consumer applications. To minimize external components, the voltage gain is internally set to 20. However, by adding an external resistor and capacitor between pins 1 and 8, the voltage gain can be set to any value up to 200. The inputs are ground-referenced, and the output is automatically biased to half the supply voltage. With a 6V supply voltage, the quiescent power drain is only 24mW, making the LM386MX-1/NOPB especially suitable for battery-powered applications.

Applications

Active filters
AM-FM radio amplifiers
Portable tape player amplifiers
Intercoms
TV sound systems
Line drivers
Ultrasonic drivers
Small servo drivers
Power converters
Industrial applications

Key features

Battery-powered operation
Minimum external components required
Wide supply voltage range: 4V ~ 12V
Low quiescent current consumption: 4mA
Voltage gain from 20 to 200
Ground-referenced input
Self-centering output quiescent voltage
Low distortion: 0.2% (voltage gain = 20, supply voltage = 6V, load resistance = 8Ω, output power = 125mW, frequency = 1kHz)
