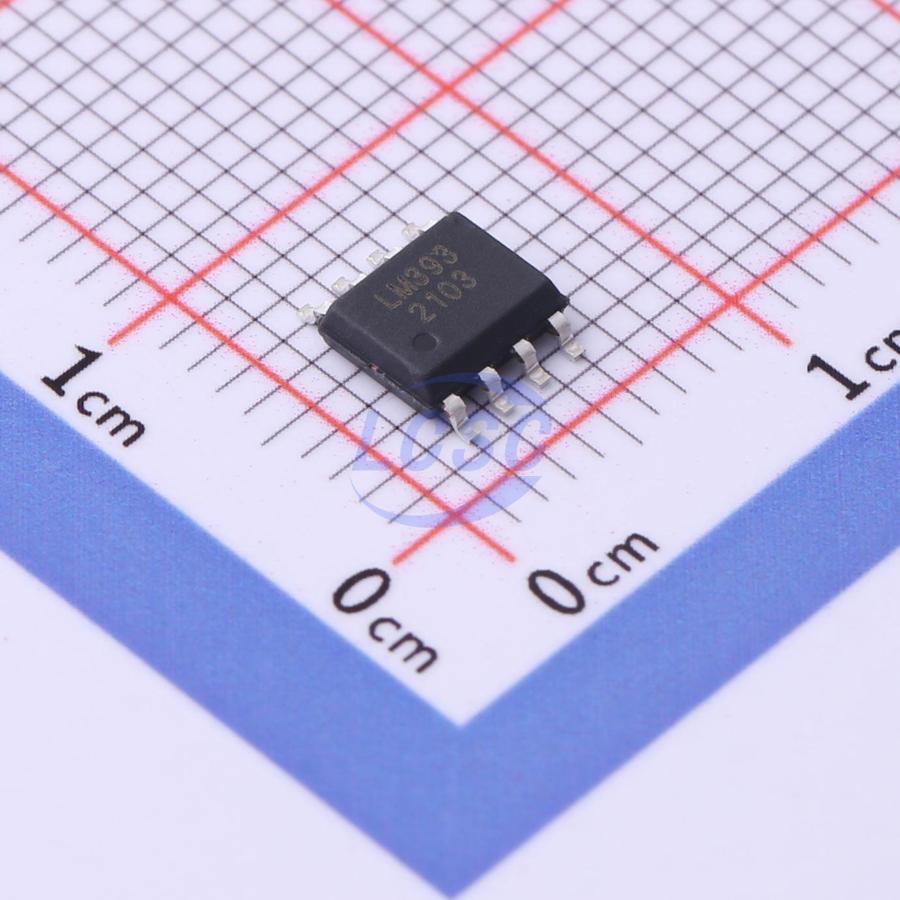

LM393
1mV 25nA 2 SOP-8 Linear Comparators RoHS
Low Power Dual Voltage Comparators
- Manufacturer
- JSCJ
- Manufacturer part #
- LM393
- Store part #
- C2829427
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,085 in stock
#C2829427
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.84 | ₹59.20 |
| 50+ | ₹9.68 | ₹484.00 |
| 150+ | ₹8.61 | ₹1,291.50 |
| 500+ | ₹7.81 | ₹3,905.00 |
| 2,500+ | ₹6.89 | ₹17,225.00 |
| 4,000+ | ₹6.56 | ₹26,240.00 |
5 × ₹11.84
₹59.20
excl. GST
₹69.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM393
₹59.20 for 5 + GST
Specifications
- Quiescent Current
- 400uA
- Output Mode
- TTL;DTL;ECL;MOS;CMOS
- Propagation Delay Time
- 300ns
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The LM393 series consists of two independent precision voltage comparators with an offset voltage specification as low as 2mV. It can operate from a single supply or dual supply, and its current is not affected by the magnitude of the supply voltage. These comparators also have a unique characteristic in that the input common - mode voltage range includes ground even though operated from a single power supply voltage. The LM393 series are available in 2 Packages: DIP - 8 and SOP - 8.
Key features
- Wide Supply Voltage Range
- Single Supply: 2.0V to 36V
- Dual Supplies: ±1.0V to ±18V
- Very Low Supply Current Drain: 0.8mA
- Independent of Supply Voltage
- Low Input Bias Current: 25nA (Typical)
- Low Input Offset Current: ±5nA (Typical)
- Low Input Offset Voltage: ±5mV (Typical)
- Differential input voltage range equal to the supply voltage
- TTL, DTL, ECL, MOS, CMOS compatible outputs
