TECH PUBLICDatasheet (PDF)

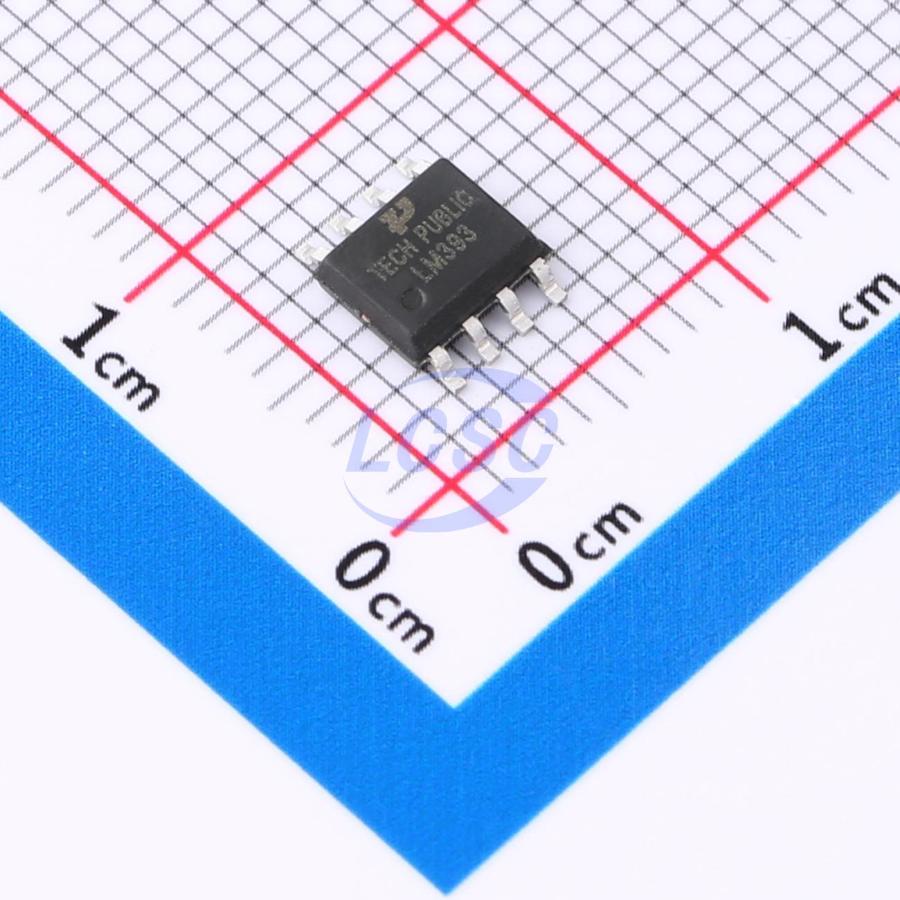

LM393-TP
4mV 65nA 2 SOP-8 Linear Comparators
SOP-8RoHSActive
Low Power Dual Voltage Comparators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM393-TP
- Store part #
- C48543195
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,680 in stock
#C48543195
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.28 | ₹62.80 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 2,500+ | ₹3.89 | ₹9,725.00 |
| 5,000+ | ₹3.51 | ₹17,550.00 |
| 10,000+ | ₹3.31 | ₹33,100.00 |
10 × ₹6.28
₹62.80
excl. GST
₹74.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM393-TP
₹62.80 for 10 + GST
Specifications
- Dual Supply
- 1.5V~15V;-15V~-1.5V
- Vos - Input Offset Voltage
- 4mV
- Ib - Input Bias Current
- 65nA
- Quiescent Current
- 600uA
- Output Mode
- TTL;CMOS
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Response Time (tr)
- 1.4us
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.197 g
Overview
This series contains two independent precision voltage comparators capable of operating from either a single or dual supply, with current consumption independent of supply voltage magnitude. These comparators also feature a unique characteristic: the input common-mode voltage range extends to ground, even when operating from a single supply.
Applications
- Alarm and monitoring circuits
- Peak and zero-crossing detectors
- Logic level translation
- Window comparators
- Infrared receivers
- Portable systems
Key features
- Wide supply voltage range: single supply 3.0V to 30V; dual supply ±1.5V to ±15V
- Ultra-low supply current: 0.8mA, independent of supply voltage
- Low input bias current: 25nA (typical)
- Low input offset current: ±5nA (typical)
- Low input offset voltage: ±7mV
- Differential input voltage range equal to supply voltage
- Output compatible with TTL, DTL, ECL, MOS, CMOS logic levels
