HGSEMIDatasheet (PDF)

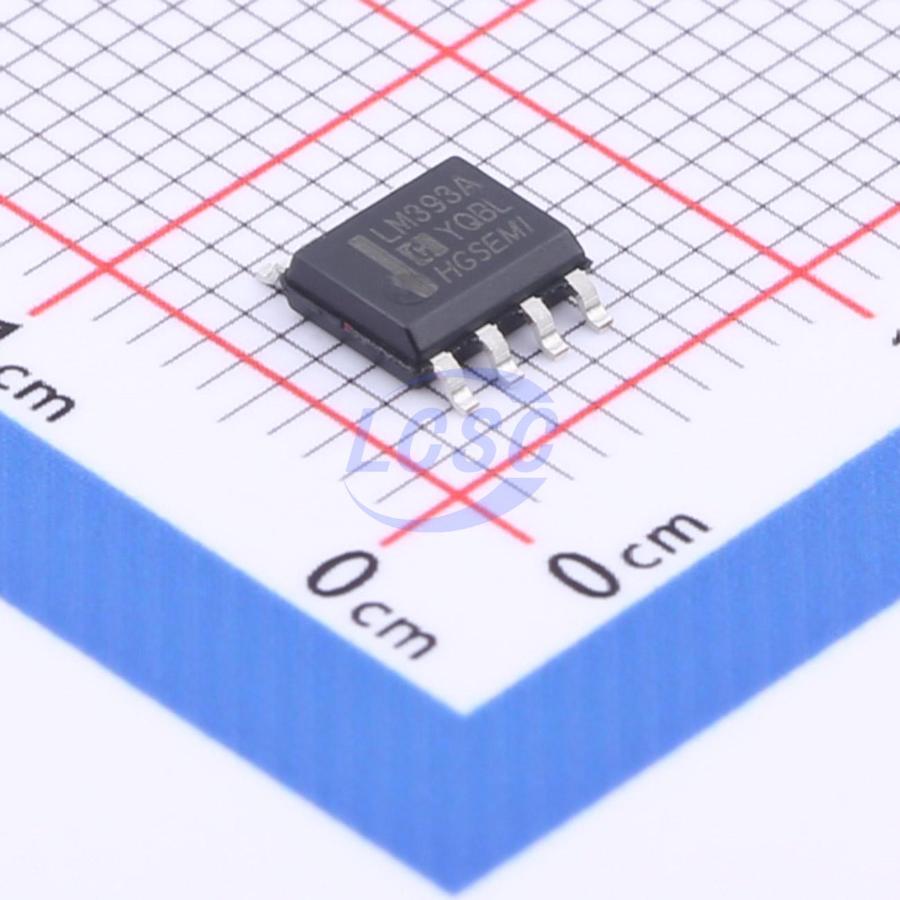

LM393AM/TR
2mV 25nA 2 SOP-8 Linear Comparators
SOP-8RoHSActive
Dual Differential Comparators
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM393AM/TR
- Store part #
- C2688472
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C2688472
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.01 | ₹90.10 |
| 100+ | ₹7.34 | ₹734.00 |
| 300+ | ₹6.51 | ₹1,953.00 |
| 2,500+ | ₹5.40 | ₹13,500.00 |
| 5,000+ | ₹4.90 | ₹24,500.00 |
| 10,000+ | ₹4.64 | ₹46,400.00 |
10 × ₹9.01
₹90.10
excl. GST
₹106.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM393AM/TR
₹90.10 for 10 + GST
Specifications
- Output Type
- Open Collector
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 25nA
- Quiescent Current
- 2.5mA
- Output Mode
- TTL;MOS;CMOS
- Number of Channels
- 2
- Propagation Delay Time
- 1.3us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 5V~30V
- Response Time (tr)
- 0.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.315 g
Overview
LM393A consists of two independent voltage comparators. These comparators are specifically designed to operate from a single supply over a wide voltage range. Dual supplies can also be used, and the low supply current drain is independent of the supply voltage magnitude. The outputs can be connected to other open-collector outputs to achieve a wired-AND relationship.
Key features
- Wide supply voltage range
- Low supply current consumption, independent of supply voltage
- Low input bias current
- Low input offset current
- Low input offset voltage
- Input common-mode voltage range includes ground
- Differential input voltage range equals supply voltage
- Low output saturation voltage
- Output voltage compatible with TTL, MOS, and CMOS logic
