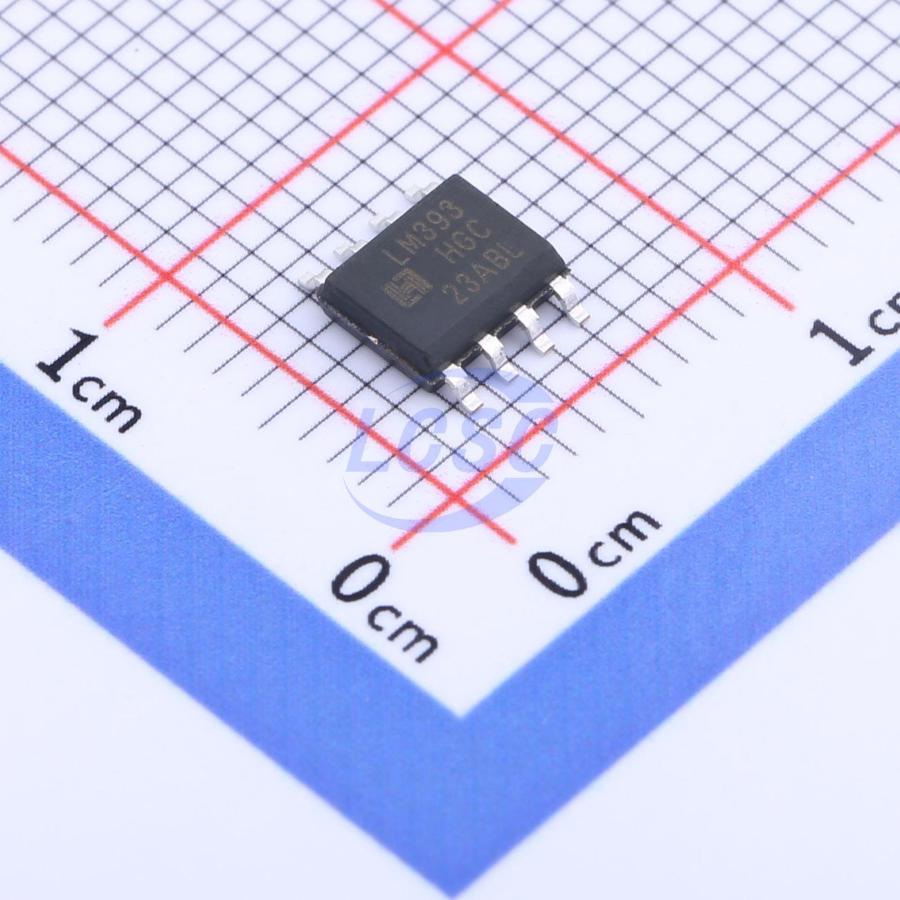

HANSCHIP semiconductorDatasheet (PDF)
LM393CDRG
1mV 100nA 2 SOP-8 Linear Comparators RoHS
SOP-8ROHS CompliantActive
Dual voltage comparator
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM393CDRG
- Store part #
- C2977085
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,500 in stock
#C2977085
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.21 | ₹52.10 |
| 100+ | ₹4.62 | ₹462.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 2,500+ | ₹3.76 | ₹9,400.00 |
| 5,000+ | ₹3.59 | ₹17,950.00 |
| 10,000+ | ₹3.49 | ₹34,900.00 |
10 × ₹5.21
₹52.10
excl. GST
₹61.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM393CDRG
₹52.10 for 10 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 600uA
- Output Mode
- CMOS
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.22 g
Overview
LM393 is a dual voltage comparator with open-drain output, capable of operating from either a single or dual power supply. It features excellent temperature stability and output short-circuit protection. It can be directly powered by the standard 5V supply in digital systems without requiring an additional power source.
Applications
- Voltage discriminator circuit
- Voltage conversion circuit
Key features
- Single supply voltage range: 2V~32V
- Dual supply voltage range: ±16V
- Low output saturation voltage: typical 0.1V @ I=4mA
- Differential input voltage range: ±VCC
- Low power consumption: typical 0.6mA @ VCC=5V
- Open-drain output
- Low input offset voltage: typical ±1mV
- Package types: DIP8, SOP8, MSOP8
