HANSCHIP semiconductorDatasheet (PDF)

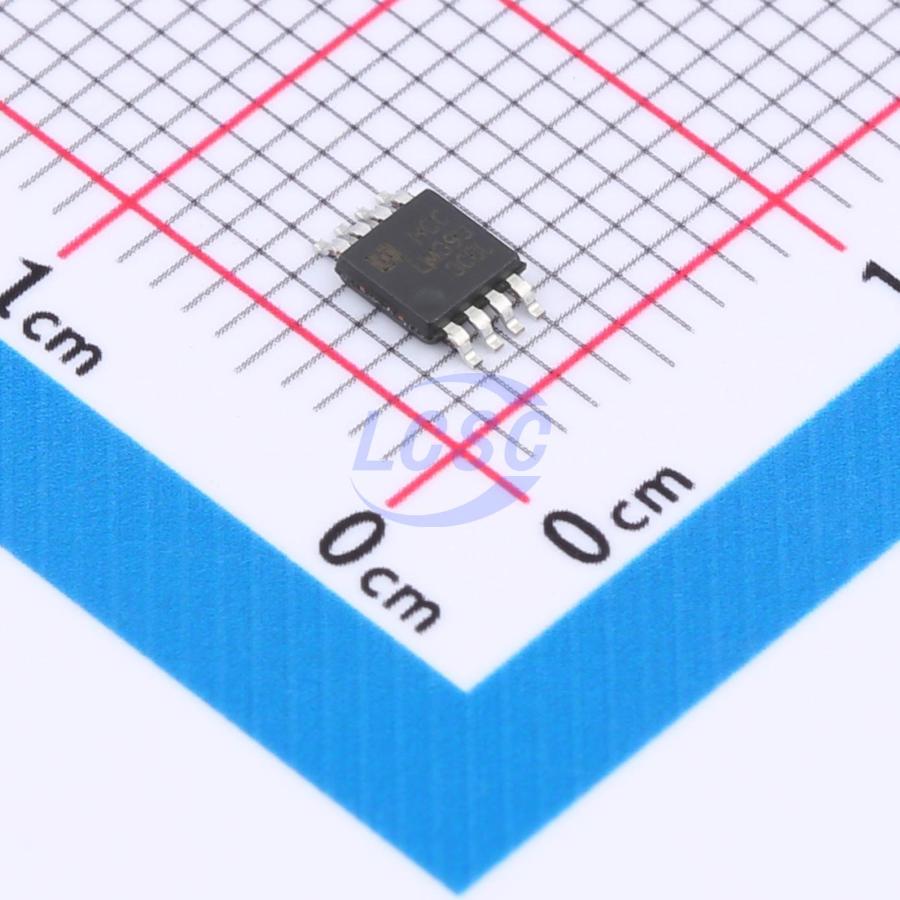

LM393DGKRG
1mV 100nA 2 MSOP-8 Linear Comparators RoHS
MSOP-8ROHS CompliantActive
Dual voltage comparator with open-drain output, single/dual power supply
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM393DGKRG
- Store part #
- C19723734
- Package / case
- MSOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,580 in stock
#C19723734
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.40 | ₹74.00 |
| 100+ | ₹5.82 | ₹582.00 |
| 300+ | ₹5.04 | ₹1,512.00 |
| 3,000+ | ₹4.46 | ₹13,380.00 |
| 6,000+ | ₹4.00 | ₹24,000.00 |
| 9,000+ | ₹3.76 | ₹33,840.00 |
10 × ₹7.40
₹74.00
excl. GST
₹87.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM393DGKRG
₹74.00 for 10 + GST
Specifications
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 600uA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.187 g
Overview
LM393/LM293 is a dual voltage comparator with open-drain output, supporting single or dual supply operation. The device features excellent temperature stability and output short-circuit protection. It can be directly powered by a standard 5V supply in digital systems, requiring no additional power source.
Applications
- Voltage discriminator circuit
- Voltage conversion circuit
Key features
- Single supply voltage range: 2V～32V
- Low output saturation voltage: typical 0.1V at IOL=4mA
- Low power consumption: typical 0.6mA at VCC=5V
- Low input offset voltage: typical ±1mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package: DIP-8, SOP-8, MSOP-8
