ChipNoboDatasheet (PDF)

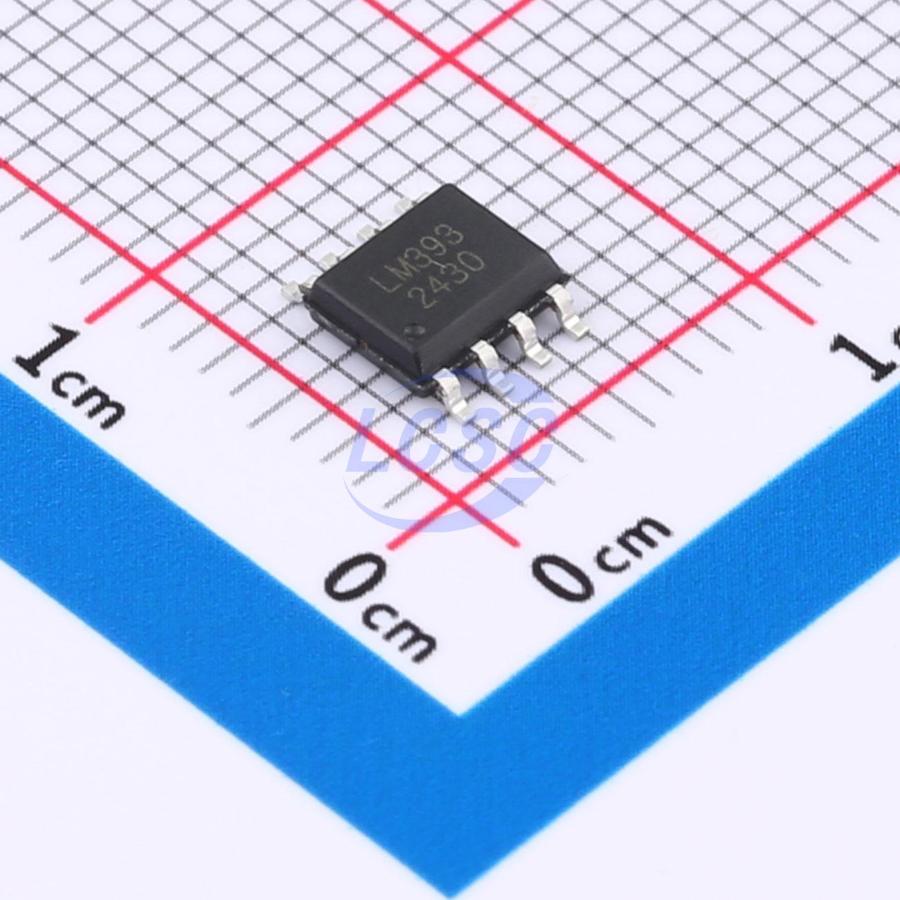

LM393DR-CN
1mV 25nA 2 SOP-8 Linear Comparators RoHS
SOP-8ROHS CompliantActive
DUAL DIFFERENTIAL COMPARATORS
- Manufacturer
- ChipNobo
- Manufacturer part #
- LM393DR-CN
- Store part #
- C42436855
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,960 in stock
#C42436855
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.47 | ₹64.70 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.34 | ₹1,302.00 |
| 1,000+ | ₹3.80 | ₹3,800.00 |
| 4,000+ | ₹3.37 | ₹13,480.00 |
| 8,000+ | ₹3.16 | ₹25,280.00 |
10 × ₹6.47
₹64.70
excl. GST
₹76.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM393DR-CN
₹64.70 for 10 + GST
Specifications
- Dual Supply
- 1.5V~16V;-16V~-1.5V
- Vos - Input Offset Voltage
- 1mV
- Quiescent Current
- 400uA
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -20℃~+85℃
- Single Supply
- 3V~32V
- Response Time (tr)
- 0.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.141 g
Overview
LM393DR-CN is a dual independent precision voltage comparator supporting single-supply or dual-supply operation. The device is designed to allow a wide common-mode input voltage range including ground level in single-supply operation. An input offset voltage specification as low as 3.0 mV makes it an ideal choice for numerous applications in consumer electronics, automotive electronics, and industrial electronics. LM393DR-CN is available in an SOP8 package.
Applications
- Industrial Equipment
- Automotive Electronics
- Power Monitoring
- Peak Detector
- Logic Level Translation
Key features
- Wide supply voltage range: single supply 3.0V to 36V; dual supply ±1.5V to ±18V
- Low input bias current: 25nA typical
- Low input offset current: ±5.0nA typical
