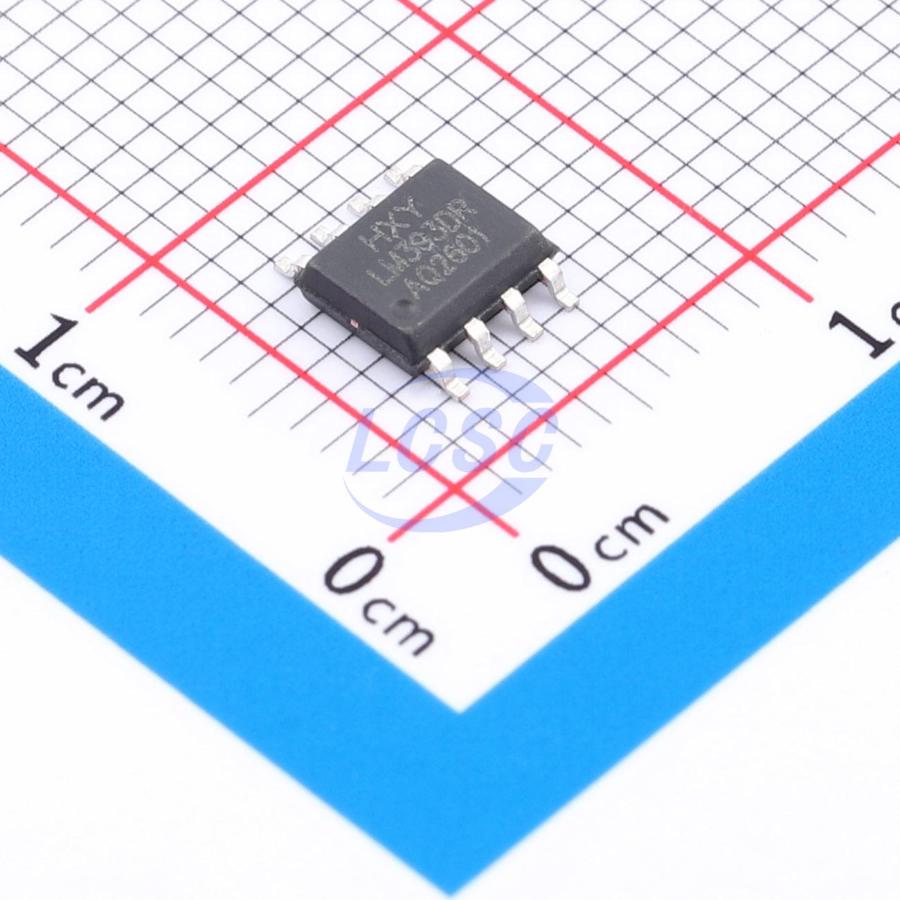

LM393DR-HXY
1mV 25nA 2 SOP-8 Linear Comparators
Dual Comparator
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- LM393DR-HXY
- Store part #
- C7427369
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C7427369
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.87 | ₹78.70 |
| 100+ | ₹6.39 | ₹639.00 |
| 300+ | ₹5.65 | ₹1,695.00 |
| 2,500+ | ₹4.70 | ₹11,750.00 |
| 5,000+ | ₹4.26 | ₹21,300.00 |
| 10,000+ | ₹4.04 | ₹40,400.00 |
10 × ₹7.87
₹78.70
excl. GST
₹92.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM393DR-HXY
₹78.70 for 10 + GST
Specifications
- Output Type
- Open-drain
- Quiescent Current
- 400uA
- Output Mode
- TTL;CMOS
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~18V;-18V~-1V
- Input Hysteresis Voltage (Vhys)
- 10mV
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Response Time (tr)
- 1.3ns
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.461 g
Overview
This device contains two independent, precision voltage comparators with a typical input offset voltage of no more than 2.0mV. It operates in either single-supply or dual-supply configurations, with supply current independent of supply voltage magnitude. A notable feature of these comparators is that the input common-mode voltage range extends to ground potential even when operating from a single supply. It is primarily used in consumer and industrial electronics. The device is available in an SOP-8 (SOIC-8) package.
Key features
- Wide supply voltage range: Single supply: 2.0V~36V; Dual supply: ±1.0V~±18V
- Low supply current: 0.8mA, independent of supply voltage
- Low input bias current: 25nA
- Low input offset current: 5.0nA
- Low input offset voltage: 5.0mV
- Input common-mode voltage range includes ground potential
- Input differential voltage range equals supply voltage range
- Output compatible with TTL, DTL, ECL, MOS, and CMOS logic levels
