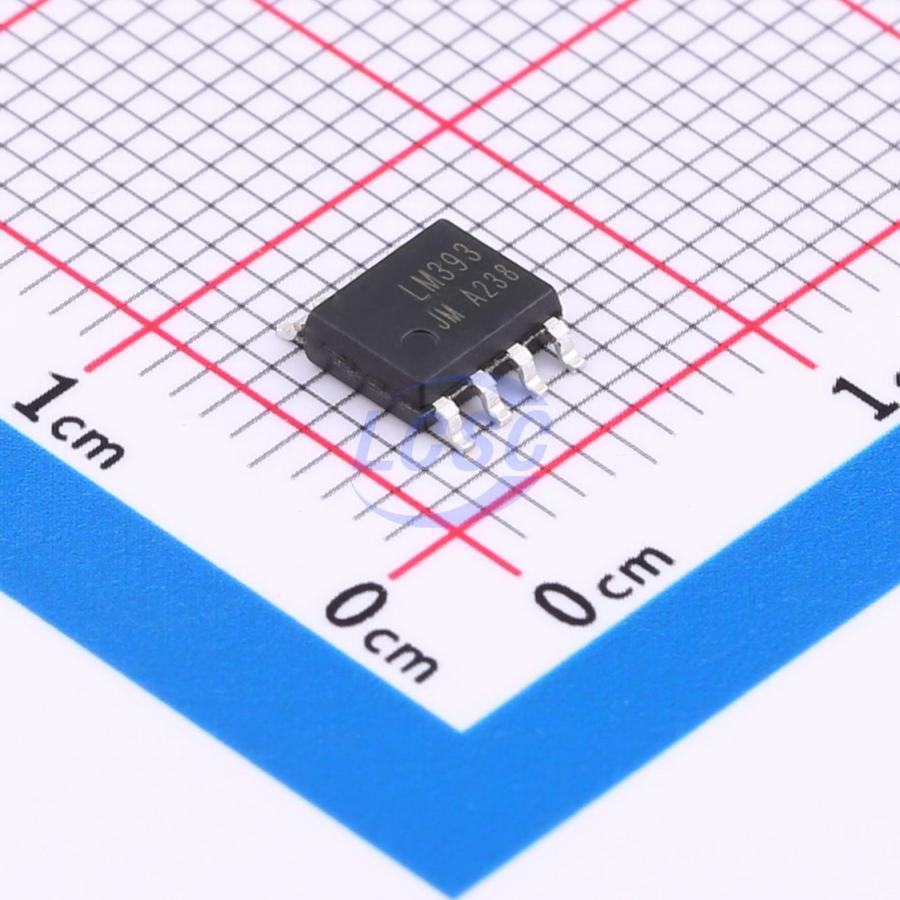

LM393DR-JSM
1mV 25nA 2 SOP-8 Linear Comparators RoHS
Dual Differential Comparators
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM393DR-JSM
- Store part #
- C18221468
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,340 in stock
#C18221468
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.86 | ₹58.60 |
| 100+ | ₹5.16 | ₹516.00 |
| 300+ | ₹4.82 | ₹1,446.00 |
| 2,500+ | ₹4.39 | ₹10,975.00 |
| 5,000+ | ₹4.18 | ₹20,900.00 |
| 10,000+ | ₹4.07 | ₹40,700.00 |
10 × ₹5.86
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM393DR-JSM
₹58.60 for 10 + GST
Specifications
- Quiescent Current
- 400uA
- Output Mode
- TTL;DTL;ECL;MOS;CMOS
- Propagation Delay Time
- 1.3us
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~9V;-9V~-1V
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Response Time (tr)
- 1.3us
- Single Supply
- 2V~18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.114 g
Overview
LM293/LM393 consists of two independent comparators. The circuit operates from a wide range of single supply voltages and now also supports dual supplies. When using dual supplies, the voltage difference between the two supplies ranges from 2V to 18V, and Vcc must be at least 1.5V above the input common-mode voltage. Quiescent current consumption is independent of supply voltage. The outputs can be connected to the open-collector outputs of other devices to implement wired-AND logic. It is primarily suited for industrial, automotive, power supply monitoring, oscillator peak detector, logic level conversion, and similar applications.
Applications
- Industrial, automotive, power monitoring, oscillator peak detection, logic voltage translation, and similar systems
Key features
- Supply voltage range:
- Single supply: 2V~18V
- Dual supply: ±1V~±9V
- Low supply current, independent of supply voltage: 0.5mA (typ.)
- Low input offset current: 5nA (typ.)
- Low input bias current: 25nA (typ.)
- Low input offset voltage: 2mV (typ.)
- Common-mode input voltage range includes ground.
- Differential input voltage range equals maximum rated supply voltage: ±18V.
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS.
- Package: SOP8/DIP8/MSOP8
