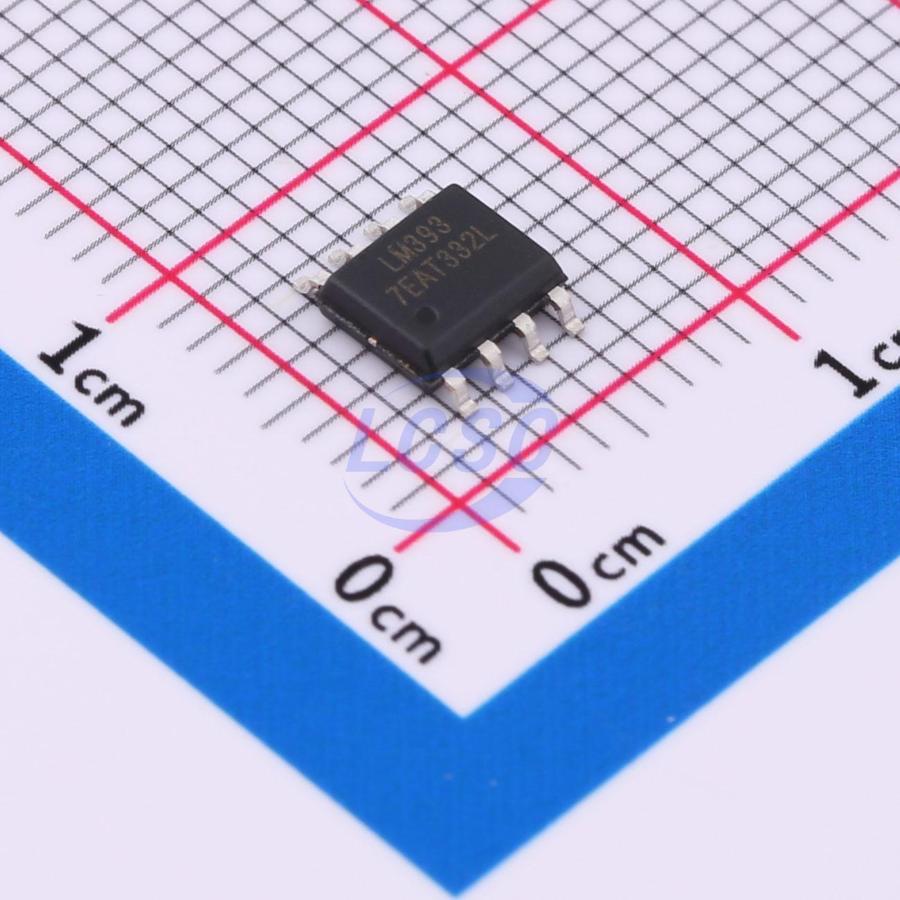

LM393DR(LX)
2mV 25nA 2 SOP-8 Linear Comparators
LM393 (LX) Dual Differential Comparator
- Manufacturer
- lingxingic
- Manufacturer part #
- LM393DR(LX)
- Store part #
- C22397231
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,260 in stock
#C22397231
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.46 | ₹109.20 |
| 200+ | ₹4.29 | ₹858.00 |
| 600+ | ₹3.64 | ₹2,184.00 |
| 4,000+ | ₹3.07 | ₹12,280.00 |
| 8,000+ | ₹2.73 | ₹21,840.00 |
| 20,000+ | ₹2.54 | ₹50,800.00 |
20 × ₹5.46
₹109.20
excl. GST
₹128.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM393DR(LX)
₹109.20 for 20 + GST
Specifications
- Output Type
- Open Collector
- Quiescent Current
- 500uA
- Output Mode
- TTL;CMOS
- Propagation Delay Time
- 1.3us
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 1V~9V;-9V~-1V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~18V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.182 g
Overview
The LM393 consists of two independent comparators internally. The circuit operates from a wide-range single supply or dual supplies. For dual-supply operation, the voltage difference between the two supplies must be between 2V and 18V, and ΔVCC must be at least 1.5V above the common-mode input voltage. Quiescent current consumption is independent of supply voltage. The open-collector outputs can be wire-AND connected with other open-collector outputs.
Applications
- Industrial
- Automotive
- Power supply monitoring
- Oscillator peak detector
- Logic level translation
Key features
- Supply voltage range: single supply 2V~18V, dual supply ±1V~±9V
- Low supply current, independent of supply voltage: 0.5mA (typical)
- Low input offset current: 5nA (typical)
- Low input bias current: 25nA (typical)
- Low input offset voltage: 2mV (typical)
- Common-mode input voltage range includes ground
- Differential input voltage range equal to maximum rated supply voltage: ±18V
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS
- Package: SOP8/DIP8/MSOP8
