HGSEMIDatasheet (PDF)

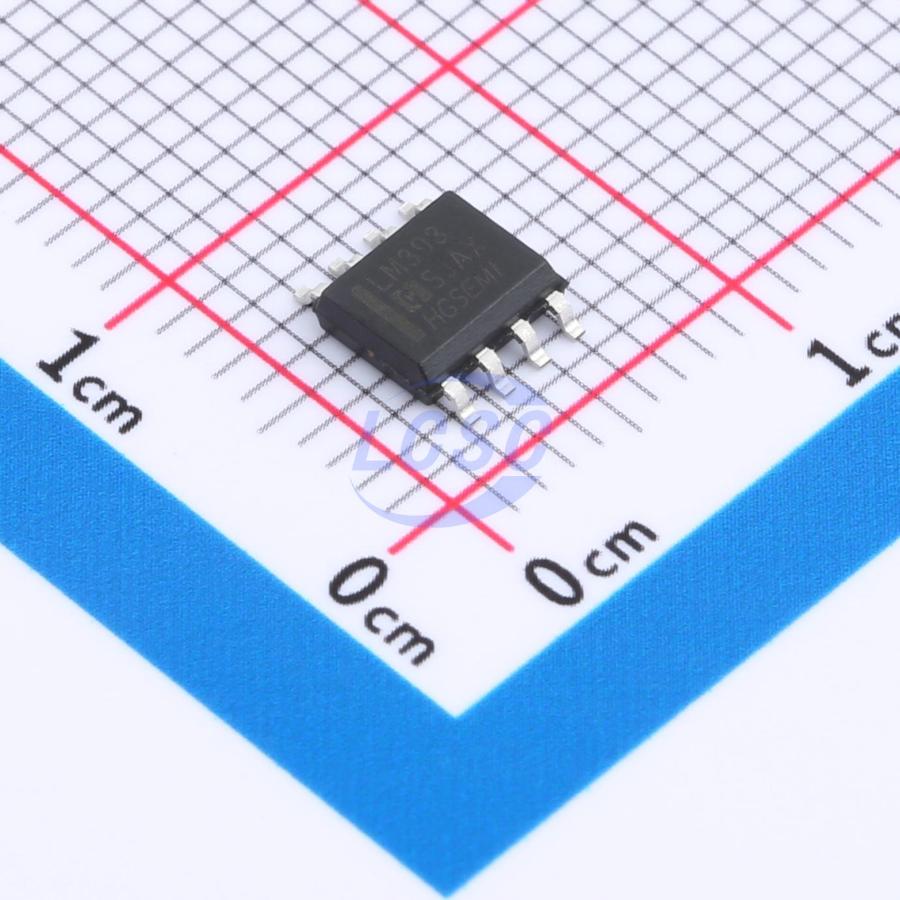

LM393M/TR
9mV 400nA 2 SOP-8 Linear Comparators
SOP-8RoHSActive
Low Power Low Offset Voltage Dual Comparators
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM393M/TR
- Store part #
- C356703
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,630 in stock
#C356703
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.26 | ₹72.60 |
| 100+ | ₹5.81 | ₹581.00 |
| 300+ | ₹5.08 | ₹1,524.00 |
| 2,500+ | ₹4.27 | ₹10,675.00 |
| 5,000+ | ₹3.84 | ₹19,200.00 |
| 10,000+ | ₹3.61 | ₹36,100.00 |
10 × ₹7.26
₹72.60
excl. GST
₹85.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM393M/TR
₹72.60 for 10 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 9mV
- Ib - Input Bias Current
- 400nA
- Quiescent Current
- 1mA
- Output Mode
- TTL;CMOS
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.19 g
Overview
LM393/LM293 is a dual voltage comparator with open-drain output, supporting single or dual supply operation. The device features excellent temperature stability and output short-circuit protection. It can be directly powered by a standard 5V supply in digital systems, requiring no additional power source.
Applications
- Voltage discriminator circuit
- Voltage conversion circuit
Key features
- Single supply voltage range: 2V~32V
- Low output saturation voltage: typical 0.1V @ IOL=4mA
- Low power consumption: typical 0.6mA @ VCC=5V
- Low input offset voltage: typical ±2mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package types: DIP-8, SOP-8, MSOP-8, TSSOP-8, SOT-23-8, DFN-8
