HGSEMIDatasheet (PDF)

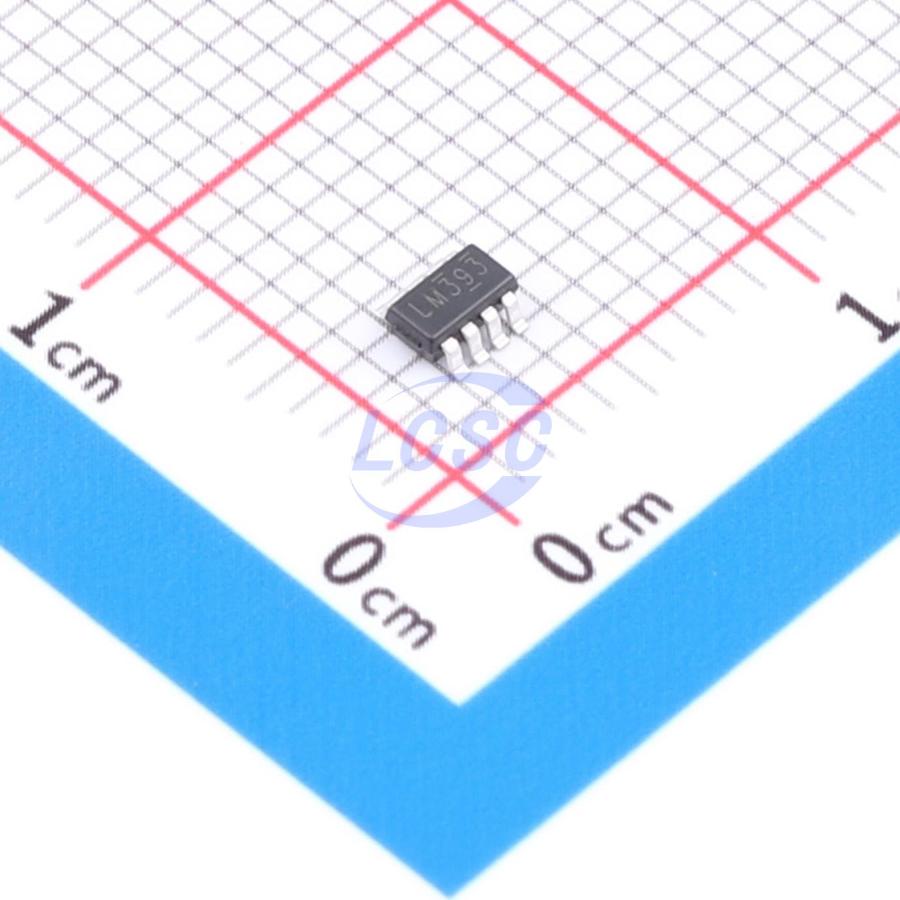

LM393M8/TR
2mV 100nA 2 SOT-23-8 Linear Comparators
SOT-23-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM393M8/TR
- Store part #
- C41378151
- Package / case
- SOT-23-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,220 in stock
#C41378151
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.22 | ₹66.10 |
| 50+ | ₹10.32 | ₹516.00 |
| 150+ | ₹8.86 | ₹1,329.00 |
| 500+ | ₹7.78 | ₹3,890.00 |
| 3,000+ | ₹6.91 | ₹20,730.00 |
| 6,000+ | ₹6.47 | ₹38,820.00 |
5 × ₹13.22
₹66.10
excl. GST
₹78.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM393M8/TR
₹66.10 for 5 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 600uA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
LM393/LM293 is a dual voltage comparator with open-drain output, supporting single or dual supply operation. The device features excellent temperature stability and output short-circuit protection. It can be directly powered by a standard 5V supply in digital systems, requiring no additional power source.
Applications
- Voltage discriminator circuit
- Voltage conversion circuit
Key features
- Single supply voltage range: 2V~32V
- Low output saturation voltage: typical 0.1V @ IOL=4mA
- Low power consumption: typical 0.6mA @ VCC=5V
- Low input offset voltage: typical ±2mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package types: DIP-8, SOP-8, MSOP-8, TSSOP-8, SOT-23-8, DFN-8
