GRDatasheet (PDF)

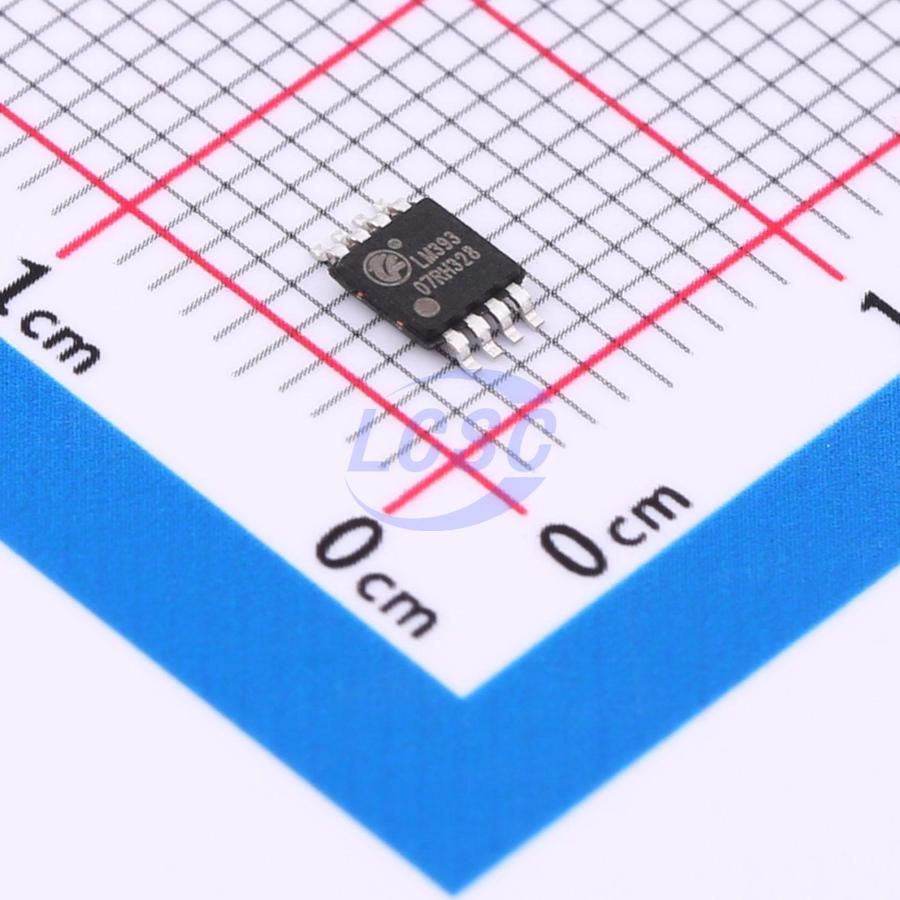

LM393MS08ARDQ
1mV 100nA 2 MSOP-8 Linear Comparators
MSOP-8RoHSActive
Dual Differential Comparators
- Manufacturer
- GR
- Manufacturer part #
- LM393MS08ARDQ
- Store part #
- C46527059
- Package / case
- MSOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C46527059
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.88 | ₹49.40 |
| 50+ | ₹7.82 | ₹391.00 |
| 150+ | ₹6.77 | ₹1,015.50 |
| 500+ | ₹6.01 | ₹3,005.00 |
| 2,500+ | ₹5.38 | ₹13,450.00 |
| 4,000+ | ₹5.07 | ₹20,280.00 |
5 × ₹9.88
₹49.40
excl. GST
₹58.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM393MS08ARDQ
₹49.40 for 5 + GST
Specifications
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 900uA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.146 g
Overview
The LM393 contains two independent voltage comparators designed to operate from a single supply over a wide voltage range, or from dual supplies. Its current consumption is independent of supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND logic. The device can use the standard 5V supply in digital systems without requiring additional power supplies.
Applications
- Compare a single signal against a reference voltage
- Compare two differential signals
- Drive comparator logic output to logic levels
Key features
- Wide single supply voltage range: 2V to 32V
- Low output saturation voltage: 0.1V@IOL=4mA (typical)
- Low power consumption: 0.9mA@VCC=5V (typical)
- Low input offset voltage: ±1mV (typical)
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open collector output
- DIP8/SOP8 package
