HGSEMIDatasheet (PDF)

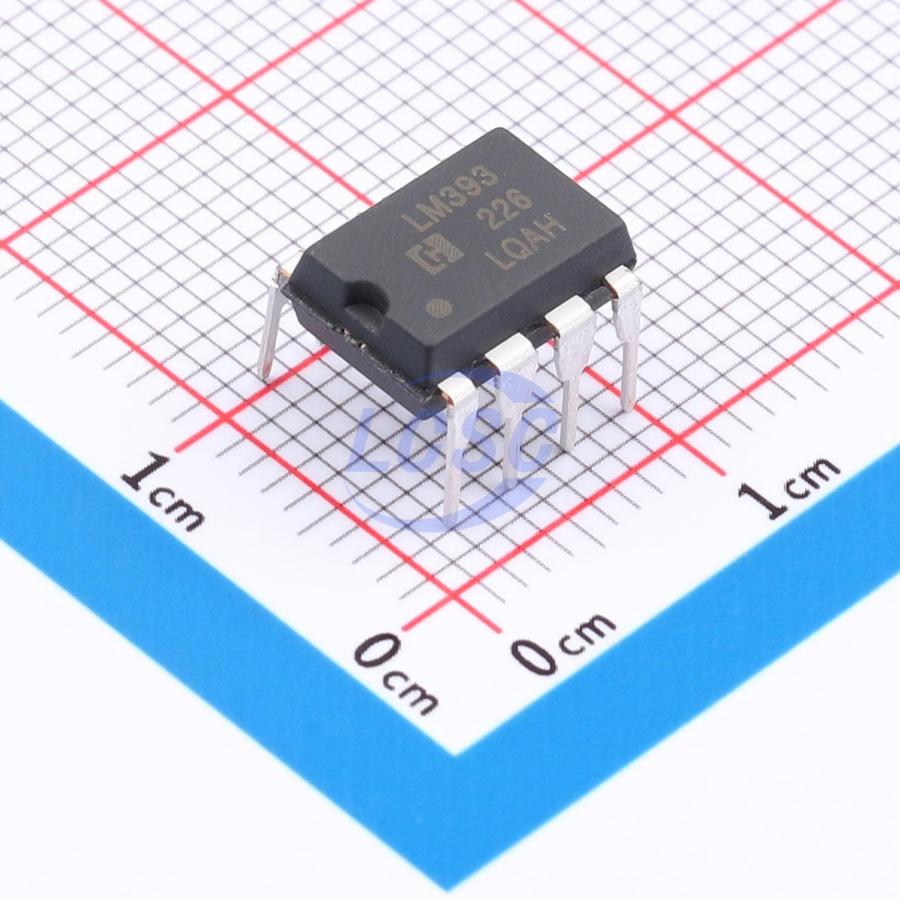

LM393N
5mV 250nA 2 DIP-8 Linear Comparators
DIP-8RoHSActive
Dual Differential Comparators
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM393N
- Store part #
- C725322
- Package / case
- DIP-8
- Category
- Linear Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,595 in stock
#C725322
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.07 | ₹65.35 |
| 50+ | ₹10.25 | ₹512.50 |
| 150+ | ₹8.61 | ₹1,291.50 |
| 500+ | ₹7.55 | ₹3,775.00 |
| 2,000+ | ₹6.71 | ₹13,420.00 |
| 4,000+ | ₹6.28 | ₹25,120.00 |
5 × ₹13.07
₹65.35
excl. GST
₹77.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM393N
₹65.35 for 5 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 5mV
- Ib - Input Bias Current
- 250nA
- Quiescent Current
- 2.5mA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.788 g
Overview
LM393/LM293 is a dual voltage comparator with open-drain output, supporting single or dual supply operation. The device features excellent temperature stability and output short-circuit protection. It can be directly powered by a standard 5V supply in digital systems, requiring no additional power source.
Applications
- Voltage discriminator circuit
- Voltage conversion circuit
Key features
- Single supply voltage range: 2V~32V
- Low output saturation voltage: typical 0.1V @ IOL=4mA
- Low power consumption: typical 0.6mA @ VCC=5V
- Low input offset voltage: typical ±2mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package types: DIP-8, SOP-8, MSOP-8, TSSOP-8, SOT-23-8, DFN-8
