TDSEMICDatasheet (PDF)

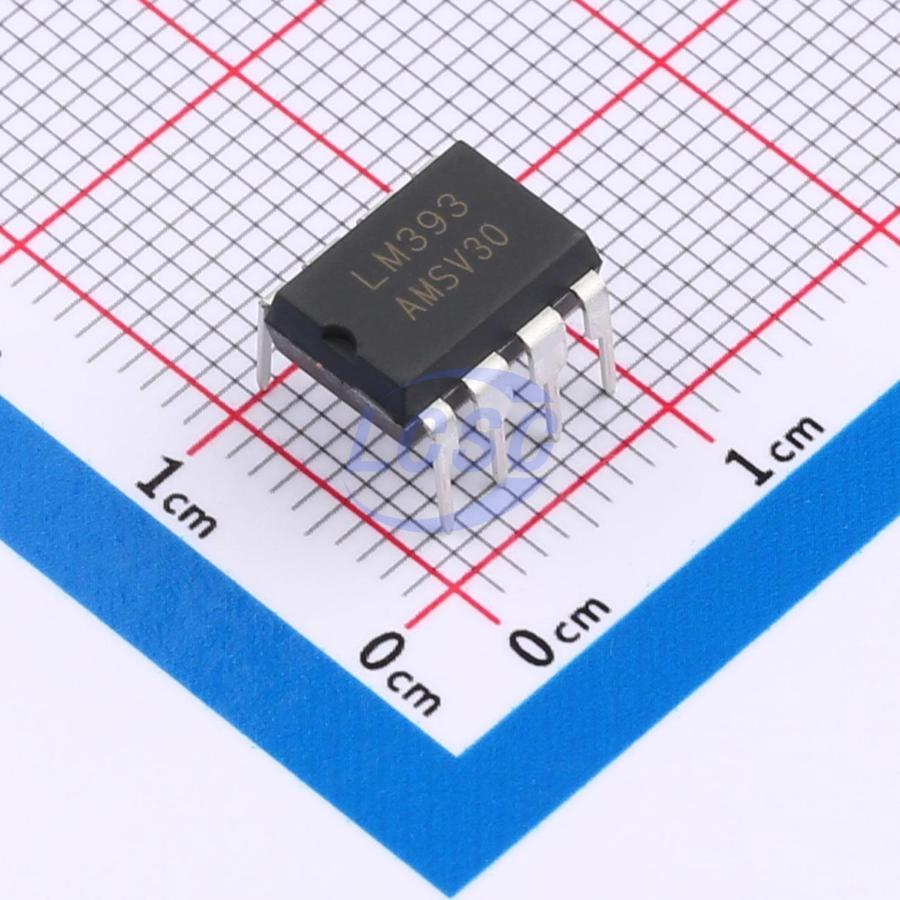

LM393N-TD
1mV 100nA 2 DIP-8 Linear Comparators RoHS
DIP-8ROHS CompliantActive
LM393 power management IC
- Manufacturer
- TDSEMIC
- Manufacturer part #
- LM393N-TD
- Store part #
- C42421985
- Package / case
- DIP-8
- Category
- Linear Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C42421985
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.95 | ₹99.50 |
| 100+ | ₹7.89 | ₹789.00 |
| 300+ | ₹6.85 | ₹2,055.00 |
| 1,000+ | ₹6.09 | ₹6,090.00 |
| 5,000+ | ₹5.46 | ₹27,300.00 |
| 10,000+ | ₹5.16 | ₹51,600.00 |
10 × ₹9.95
₹99.50
excl. GST
₹117.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM393N-TD
₹99.50 for 10 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- ±16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 1mV
- Quiescent Current
- 600uA
- Ib - Input Bias Current
- 100nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.853 g
Overview
LM393 is a dual voltage comparator with open-drain output, supporting single or dual supply operation. It features excellent temperature stability and output short-circuit protection. It can be powered directly from a standard 5V supply in digital systems without requiring an additional power source.
Applications
- Voltage discriminator circuit
- Voltage conversion circuit
- Other application areas
Key features
- Single supply voltage range: 2V～32V
- Low output saturation voltage: typical 0.1V @ IOL=4mA
- Low power consumption: typical 0.6mA @ VCC=5V
- Low input offset voltage: typical ±1mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package types: DIP-8, SOP-8, MSOP-8
